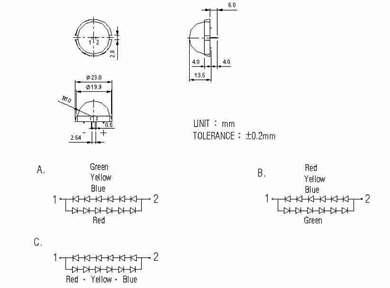

20mm BICOLOR LED LAMP
.JPG) |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA | |
| PIN FUNCTION | Diffusion TYPE |
CLEAR TYPE |
WAVE LENGTH (nm) |
IR MAX (uA) VR=5V |
VF (V) iF=20mA |
LUMINOUS INTENSITY IF=20mA |
VIEW ANGLE |
Remark |
||||
A |
B |
C |
A |
B |
C |
|||||||
|
MODAL NO |
MODAL NO |
MODAL NO |
MODAL NO |
MODAL NO |
MODAL NO |
||||||
| RED | B2007SM |
B2007SC |
660 | 100 | 1.8 | 8/20mcd | 60°/15° | |||||
| RED | 660 | 100 | 1.8 | 8/20mcd | 60°/15° | |||||||
| GREEN | B2007GM |
B2007gC |
570 | 100 | 2.2 | 4.5/11mcd | 60°/15° | |||||
| GREEN | 570 | 100 | 2.2 | 4.5/11mcd | 60°/15° | |||||||
| YELLOW | B2007YM |
B2007yC |
600 | 100 | 2.0 | 4/10mcd | 60°/15° | |||||
| YELLOW | 600 | 100 | 2.0 | 4/10mcd | 60°/15° | |||||||
| BLUE | B2007FM |
B2007fC |
470 | 100 | 3.6 | 15/40mcd | 60°/15° | |||||
| BLUE | 470 | 100 | 3.6 | 15/40mcd | 60°/15° | |||||||
| RED | B20071M |
B20071M+ |
B20071C |
B20071C+ |
660 | 100 | 1.8 | 8/20mcd | 60°/15° | |||
| GREEN | 570 | 100 | 2.2 | 4.5/11mcd | 60°/15° | |||||||
| RED | B20072M |
B20072C |
660 | 100 | 1.8 | 8/20mcd | 60°/15° | |||||
| YELLOW | 600 | 100 | 2.0 | 4/10mcd | 60°/15° | |||||||
| RED | B20076M |
B20076C |
660 | 100 | 1.8 | 8/20mcd | 60°/15° | |||||
| BLUE | 470 | 100 | 3.6 | 15/40mcd | 60°/15° | |||||||
| GREEN | B2007DM |
B2007DC |
570 | 100 | 2.2 | 4.5/11mcd | 60°/15° | |||||
| YELLOW | 600 | 100 | 2.0 | 4/10mcd | 60°/15° | |||||||
| GREEN | B20074M |
B20074C |
570 | 100 | 2.2 | 4.5/11mcd | 60°/15° | |||||
| BLUE | 470 | 100 | 3.6 | 15/40mcd | 60°/15° | |||||||
 |
¡@ |  |
