0.3" DUAL DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE | COMMON CATHODE |
|
iR may (uA) |
|
LUMINUS INTENSITY |
||||||||
A |
C |
E |
B |
D |
F |
|||||||||
EMTTING COLOR |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
(nm) | VR=5V | IF=20mA | IF=20mA | ||||
GaP RED |

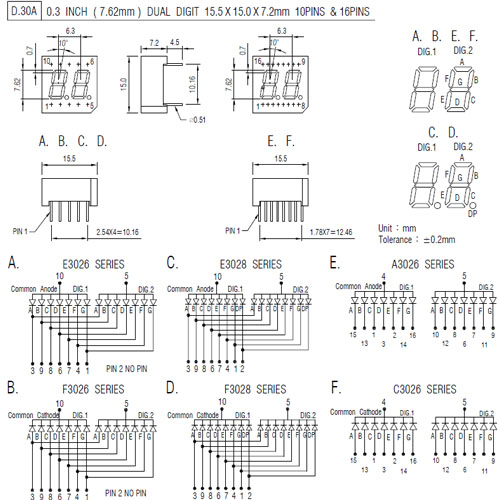

E3026H | E3028H | A3026H | F3026H | F3028H | C3026H | 695 | 100 | 2.2 | 0.4MCD | ||||
GaAsp ORANGE RED |
E3026O | E3028O | A3026O | F3026O | F3028O | C3026O | 635 | 100 | 2.0 | 2.5MCD | ||||
GaP GREEN |
E3026G | E3028G | A3026G | F3026G | F3028G | C3026G | 570 | 100 | 2.2 | 4.5MCD | ||||
GaP YELLOW |
E3026Y | E3028Y | A3026Y | F3026Y | F3028Y | C3026Y | 600 | 100 | 2.2 | 2.5MCD | ||||
GaAIAS RED |
E3026RS | E3028RS | A3026RS | F3026RS | F3028RS | C3026RS | 650 | 100 | 1.8 | 3.0MCD | ||||
GaAIAS RED |
0 | 00 | 0 | 0 | 00 | 0 | 0 | 0 | 0 | 0 | ||||
GaAIAS YELLOW GREEN |
0 | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||
SIC BLUE |
E3026SF | E3028SF | A3026SF | F3026SF | F3028SF | C3026SF | 465±5 | 100 | 3.6 | 30MCD | ||||
ZNSE WHITE |
E30263 | E30283 | A30263 | F30263 | F30283 | C30263 | 485+ | 100 | 3.0 | 2.5MCD | ||||
 |
¡@ |  |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2698-9798 FAX:886-2-2698-3818 4F-5 NO.79,SEC.1,HSIN TAI WU ROAD,HSI-CHIH, TAIPEI HSIEN,TAIWAN R.O.C. |
