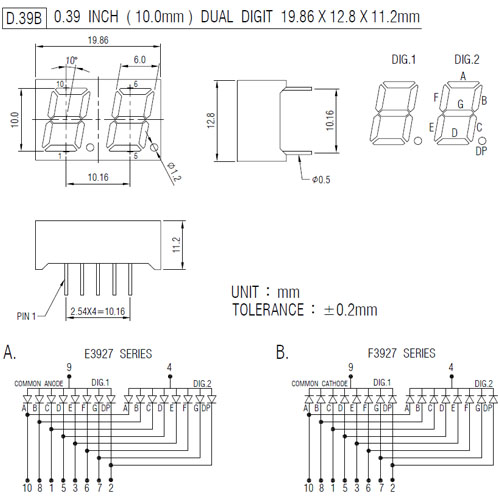

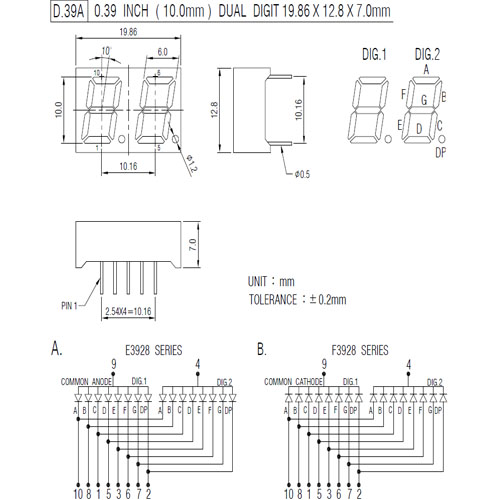

0.39" DUAL DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE | COMMON CATHODE |
|
iR may (uA) |
|
LUMINUS INTENSITY |
||||||||
A |
C |
E |
B |
D |
F |
|||||||||
EMTTING COLOR |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
(mm) | VR=5V | IF=20mA | IF=20mA | ||||
GaP RED |
E3928H | 0 | 0 | F3928H | 0 | 0 | 695 | 100 | 2.2 | 0.4MCD | ||||
GaAsp ORANGE RED |
E3928O | 0 |
0 | F3928O | 0 | 0 | 635 | 100 | 2.0 | 2.5MCD | ||||
GaP GREEN |
E3928G | 0 | 0 | F3928G | 0 | 0 | 570 | 100 | 2.2 | 4.5MCD | ||||
GaP YELLOW |
E3928Y | 0 | F3928Y | 00 | 0 | 600 | 100 | 2.2 | 2.5MCD | |||||
GaAIAS RED |
E3928RS | 0 | 00 | F3928RS | 0 | 0 | 650 | 100 | 1.8 | 3.0MCD | ||||
GaAIAS RED |
0 | 00 | 0 | 0 | 00 | 0 | 0 | 0 | 0 | 0 | ||||
GaAIAS YELLOW GREEN |
0 | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||
SIC BLUE |
E3928SF | 0 | 0 | F3928SF | 0 | 0 | 465±5 | 100 | 3.6 | 4.0MCD | ||||
ZNSE WHITE |
E39283 | 0 | 0 | F39283 | 0 | 0 | 485+ | 100 | 3.0 | 2.5MCD | ||||
 |
¡@ |  |
