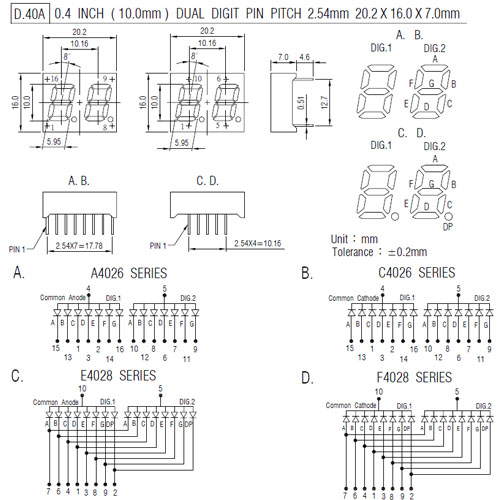

0.4" DIGIT SERIES
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE | COMMON CATHODE |
|
iR may (uA) |
|
LUMINUS INTENSITY |
||||||||
A |
C |
E |
B |
D |
F |
|||||||||
EMTTING COLOR |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
(nm) |
VR=5V |
IF=20mA |
IF=20mA |
||||
GaP RED |
A4026H | E4028H | 0 | C4026H | F4028H | 0 | 695 | 100 | 2.2 | 0.4MCD | ||||
GOAsp ORANGE RED |
A4026O | E4028O | 0 | C4026O | F4028O | 0 | 635 | 100 | 2.0 | 2.5MCD | ||||
GOP GREEN |
A4026G | E4028G | 0 | C4026G | F4028G | 0 | 570 | 100 | 2.2 | 4.5MCD | ||||
GOP YELLOW |
A4026Y | E4028Y | C4026Y | F4028Y | 0 | 600 | 100 | 2.2 | 2.5MCD | |||||
GOAIAS RED |
A4026RS | E4028RS | 00 | A4026RS | F4028RS | 0 | 650 | 100 | 1.8 | 3.0MCD | ||||
GOAIAS RED |
0 | 00 | 0 | 0 | 00 | 0 | 0 | 0 | 0 | 0 | ||||
GOAIAS YELLOW GREEN |
0 | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||
SIC BLUE |
A4026F | E4028F | 0 | C4026F | F4028F | 0 | 430 | 100 | 3.6 | 2.5MCD | ||||
ZNSE WHITE |
A40263 | E40283 | 0 | C40263 | F40283 | 0 | 485+ | 100 | 3.0 | 2.5MCD | ||||
 |
¡@ |  |
