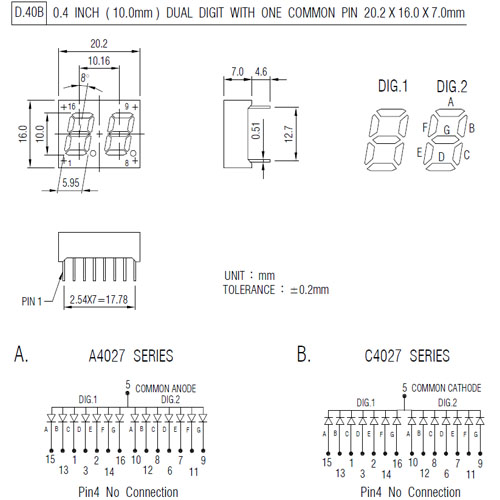

0.4" DUAL DIGIT WITH ONE COMMON PIN
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE | COMMON CATHODE |
|
iR may (uA) |
|
LUMINUS INTENSITY |
||||||||
A |
C |
E |
B |
D |
F |
|||||||||
EMTTING COLOR |
MODEL NO.
|
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
(nm) |
VR=5V |
IF=20mA |
IF=20mA |
||||
GAP RED |
A4027H | 0 | 0 | C4027H | 0 | 0 | 695 | 100 | 2.2 | 0.4MCD | ||||
GOAsp ORANGE RED |
A4027O | 0 |
0 | C4027O | 0 | 0 | 635 | 100 | 2.0 | 2.5MCD | ||||
GOP GREEN |
A4027G | 0 | 0 | C4027G | 0 | 0 | 570 | 100 | 2.2 | 4.5MCD | ||||
GOP YELLOW |
A4027Y | 0 | C4027Y | 00 | 0 | 600 | 100 | 2.2 | 2.5MCD | |||||
GOAIAS RED |
A4027RS | 0 | 00 | A4027RS | 0 | 0 | 650 | 100 | 1.8 | 3.0MCD | ||||
GOAIAS RED |
0 | 00 | 0 | 0 | 00 | 0 | 0 | 0 | 0 | 0 | ||||
GOAIAS YELLOW GREEN |
0 | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||
SIC BLUE |
A4027SF | 0 | 0 | C4027SF | 0 | 0 | 465±5 | 100 | 3.6 | 30MCD | ||||
ZNSE WHITE |
A40273 | 0 | 0 | C40273 | 0 | 0 | 485+ | 100 | 3.0 | 2.5MCD | ||||
 |
¡@ |  |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2698-9798 FAX:886-2-2698-3818 4F-5 NO.79,SEC.1,HSIN TAI WU ROAD,HSI-CHIH, TAIPEI HSIEN,TAIWAN R.O.C. |
