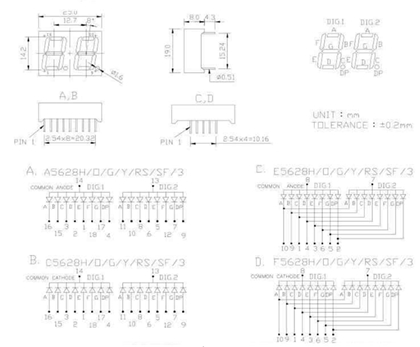

0.56 INCH SINGLE DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
iR may (uA) |
|
LUMINUS INTENSITY |
||||||||
A |
C |
E |
B |
D |
F |
|||||||||
EMTTING COLOR |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
(nm) |
VR=5V |
IF=20mA |
IF=20mA |
||||
GaP RED |
A5628H | E5628H | 0 | C5628H | F5628H | 0 | 695 | 100 | 2.2 | 0.4MCD | ||||
GaAsp ORANGE RED |
A5628O | E5628O | 0 | C5628O | F5628O | 0 | 635 | 100 | 2.0 | 2.5MCD | ||||
GaP GREEN |
A5628G | E5628G | 0 | C5628G | F5628G | 0 | 570 | 100 | 2.2 | 4.5MCD | ||||
GaP YELLOW |
A5628Y | E5628Y | C5628Y | F5628Y | 0 | 600 | 100 | 2.2 | 2.5MCD | |||||
GaAIAS RED |
A5628RS | E5628RS | 00 | A5628RS | F5628RS | 0 | 650 | 100 | 1.8 | 3.0MCD | ||||
GaAIAS RED |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||
GaAIAS YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||
SIC BLUE |
A5628FS | E5628FS | 0 | C5628FS | F5628FS | 0 | 470 | 100 | 3.6 | 4.0MCD | ||||
ZNSE WHITE |
A56283 | E56283 | 0 | C56283 | F56283 | 0 | 485+ | 100 | 3.0 | 2.5MCD | ||||
 |
¡@ |  |
