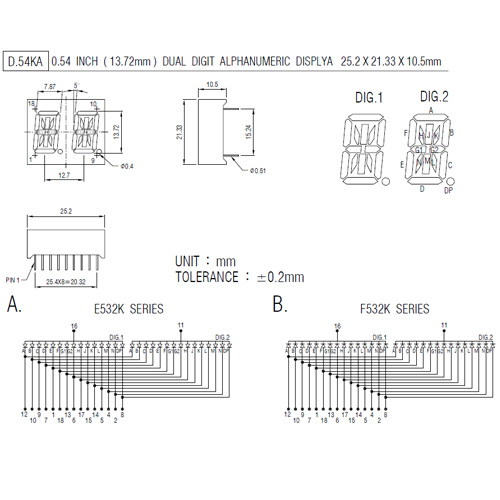

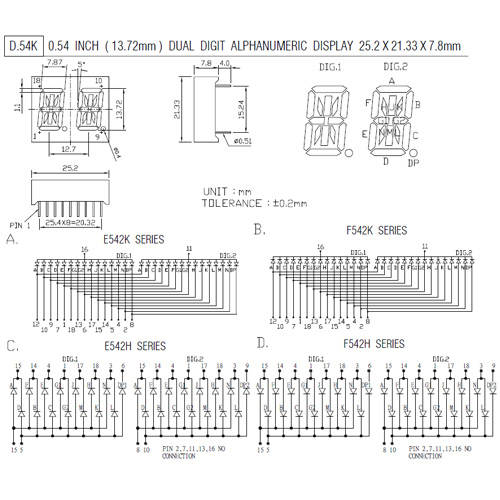

0.54 INCH DUAL DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
iR may (uA) |
|
LUMINUS INTENSITY |
||||||||
A |
C |
E |
B |
D |
F |
|||||||||
EMITTING COLOR |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
(nm) |
VR=5V |
IF=20mA |
IF=20mA |
||||
GaP RED |
E542KH |
F542KH |
695 | 100 | 2.2 | 0.6MCD | ||||||||
GaAsp ORANGE RED |
E542KO |
F542KO |
635 | 100 | 2.0 | 4.0MCD | ||||||||
GaP GREEN |
E542KG |
F542KG |
570 | 100 | 2.2 | 4.5MCD | ||||||||
GaP YELLOW |
E542KY |
F542KY |
600 | 100 | 2.2 | 4.0MCD | ||||||||
GaAIAS RED |
E542KRS |
F542KRS |
650 | 100 | 1.8 | 8.0MCD | ||||||||
GaAIAS RED |
||||||||||||||
GaAIAS YELLOW GREEN |
||||||||||||||
SIC BLUE |
E542KFS |
F542KFS |
430 | 100 | 3.6 | 30MCD | ||||||||
ZNSE WHITE |
E542K3 |
F542K3 |
485+ | 100 | 3.0 | 2.0MCD | ||||||||
 |
 |
