0.10 INCH QUAD DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |

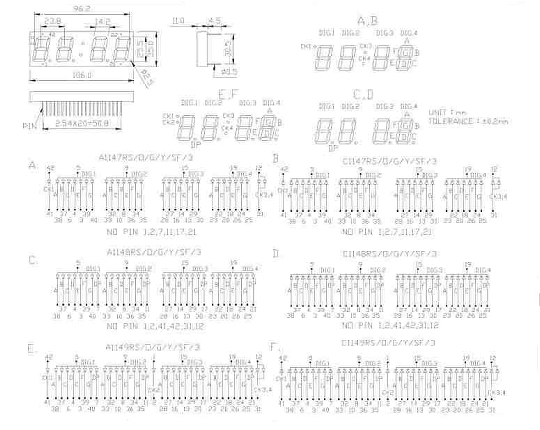

| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
iR may (uA) |
|
LUMINUS INTENSITY |
||||||||
A |
C |
E |
B |
D |
F |
|||||||||
EMITTING COLOR |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
(nm) |
VR=5V |
IF=20mA |
IF=20mA |
||||
GaP RED |
A1147H | A1148H | A1149H | C1147H | C1148H | C1149H | 695 | 100 | 2.2 | 0.6MCD | ||||
GaAsp ORANGE RED |
A1147O | A1148O | A1149O | C1147O | C1148O | C1149O | 635 | 100 | 2.0 | 4.0MCD | ||||
GaP GREEN |
A1147G | A1148G | A1149G | C1147G | C1148G | C1149G | 570 | 100 | 2.2 | 4.5MCD | ||||
GaP YELLOW |
A1147Y | A1148Y | A1149Y | C1147Y | C1148Y | C1149Y | 600 | 100 | 2.2 | 4.0MCD | ||||
GaAIAS RED |
A1147RS | A1148RS | A1149RS | C1147RS | C1148RS | C1149RS | 650 | 100 | 1.8 | 8.0MCD | ||||
GaAIAS RED |
0 | 0 | 0 | 0 | 0 | C | 0 | 0 | 0 | 0 | ||||
GaAIAS YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||
SIC BLUE |
A1147FS | A1148FS | A1149FS | C1147FS | C1148FS | C1149FS | 470 | 100 | 3.6 | 4.0MCD | ||||
ZNSE WHITE |
A11473 | A11483 | A11493 | C11473 | C11483 | C11493 | 485+ | 100 | 3.0 | 2.0MCD | ||||
 |
¡@ |  |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2698-9798 FAX:886-2-2698-3818 4F-5 NO.79,SEC.1,HSIN TAI WU ROAD,HSI-CHIH, TAIPEI HSIEN,TAIWAN R.O.C. |
