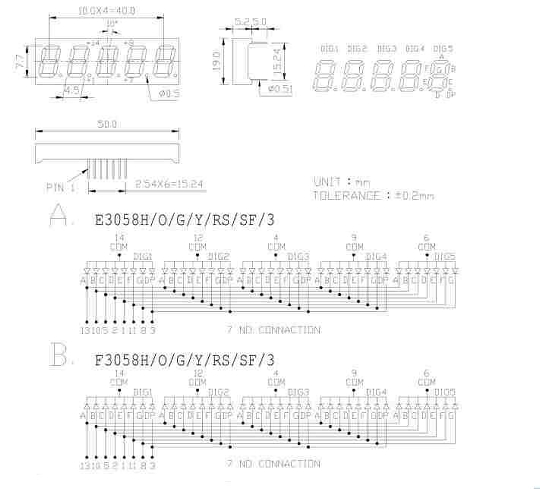

0.3 INCH FIVE DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
model no. | model no. | model no. | model no. | model no. | model no. | (nm) |
VR=5V |
IF=20mA |
IF=20mA |
||||||||
GaP RED |
E3058H | 0 | 0 | F3058H | 0 | 695 | 100 | 2.2 | 0.6MCD | |||||||||
GaAsp PRANGE RED |
E3058O | 0 | 0 | F3058O | 0 | 635 | 100 | 2.0 | 4.0MCD | |||||||||
GaP GREEN |
E3058G | 0 | 0 | F3058G | 0 | 570 | 100 | 2.2 | 4.5MCD | |||||||||
GaP YELLOW |
E3058Y | 0 | F3058Y | 0 | 600 | 100 | 2.2 | 4.0MCD | ||||||||||
GaAIAS RED |
E3058RS | 0 | 00 | F3058RS | 0 | 650 | 100 | 1.8 | 8.0MCD | |||||||||
GaAIAS RED |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAIAS YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
SIC BLUE |
E3058FS | 0 | 0 | F3058FS | 0 | 465±5 | 100 | 3.6 | 30MCD | |||||||||
ZNSE WHITE |
E30583 | 0 | 0 | F30583 | 0 | 485+ | 100 | 3.0 | 2.0MCD | |||||||||
 |
¡@ |  |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2698-9798 FAX:886-2-2698-3818 4F-5 NO.79,SEC.1,HSIN TAI WU ROAD,HSI-CHIH, TAIPEI HSIEN,TAIWAN R.O.C. |
