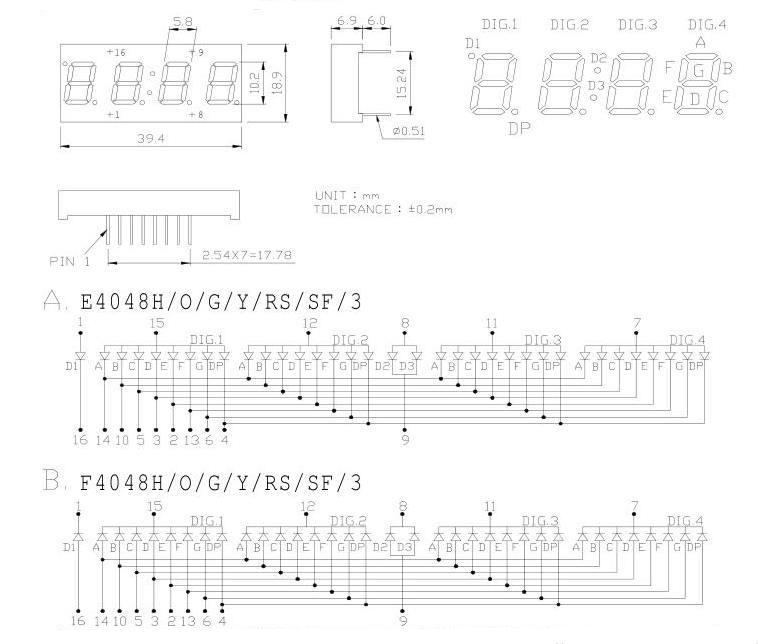

0.4 INCH QUAD DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE | COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMTTING COLOR |
model no. | model no. | model no. | model no. | model no. | model no. | (nm) | VR=5V | IF=20mA | IF=20mA | ||||||||
CaP RED |
E4048H | 0 | 0 | F4048H | 0 | 0 | 695 | 100 | 2.2 | 0.6MCD | ||||||||
GaAsp PRANGE RED |
E4048O | 0 |
0 | F4048O | 0 | 0 | 635 | 100 | 2.0 | 4.0MCD | ||||||||
GaP GREEN |
E4048G | 0 | 0 | F4048G | 0 | 0 | 570 | 100 | 2.2 | 4.5MCD | ||||||||
GaP YELLOW |
E4048Y | 0 | F4048Y | 00 | 0 | 600 | 100 | 2.2 | 4.0MCD | |||||||||
GaAIAS RED |
E4048RS | 0 | 00 | F4048RS | 0 | 0 | 650 | 100 | 1.8 | 8.0MCD | ||||||||
GaAIAS RED |
0 | 00 | 0 | 0 | 00 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAIAS YELLOW GREEN |
0 | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
SIC BLUE |
E4048F | 0 | 0 | F4048F | 0 | 0 | 430 | 100 | 3.6 | 2.0MCD | ||||||||
ZNSE WHJTE |
E40483 | 0 | 0 | F40483 | 0 | 0 | 485+ | 100 | 3.0 | 2.0MCD | ||||||||
 |
¡@ |  |
