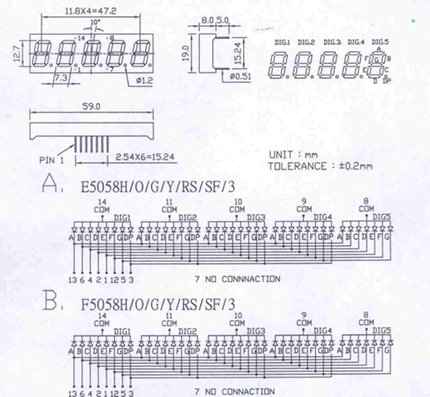

0.5 INCH FIVE DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
model no. | model no. | model no. | model no. | model no. | model no. | (nm) | VR=5V | IF=20mA | IF=20mA | ||||||||
GaP RED |
E5058H | 0 | 0 | F5058H | 0 | 0 | 695 | 100 | 2.2 | 0.6MCD | ||||||||
GaAsp ORANGE RED |
E5058O | 0 | 0 | F5058O | 0 | 0 | 635 | 100 | 2.0 | 4.0MCD | ||||||||
GaP GREEN |
E5058G | 0 | 0 | F5058G | 0 | 0 | 570 | 100 | 2.2 | 4.5MCD | ||||||||
GaP YELLOW |
E5058Y | 0 | F5058Y | 0 | 0 | 600 | 100 | 2.2 | 4.0MCD | |||||||||
GaAIAS RED |
E5058RS | 0 | 00 | F5058RS | 0 | 0 | 650 | 100 | 1.8 | 8.0MCD | ||||||||
GaAIAS RED |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAIAS YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
SIC BLUE |
E5058SF | 0 | 0 | F5058SF | 0 | 0 | 465±5 | 100 | 3.6 | 30MCD | ||||||||
ZNSE WHITE |
E50583 | 0 | 0 | F50583 | 0 | 0 | 485+ | 100 | 3.0 | 2.0MCD | ||||||||
 |
¡@ |  |
