SINGLE LED WITH HOLDER(LED DIA 4.8 mm VIEW LENS 3.2 mm COLORED DIFFUSION/ COLORED TRANSPARENCY)
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| LED EMITTED COLOR | COLORED DIFFUSION LEDS MODEL NO. |
|
|
|
|
|||||||||||

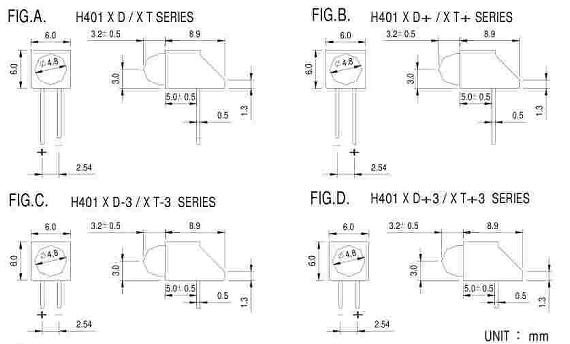

FIG.A. |
FIG.B. |
FIG.C. |
FIG.D |
|||||||||||||
H302HD |
H402HDHD+ |
H402HDHD-3 |
H402HDHD+3 |
(nm) |
@VR=5V |
@IF=20mA |
IF=20mA |
|||||||||
RED |
H401HD | H401HD+ | H401HD-3 | H401HD+3 | 695 |
100 |
2.2V |
1.4~3.5 |
||||||||
HI-EFF RED |
H401ED | H401ED+ | H401ED-3 | H401ED+3 | 635 |
100 |
1.8V |
5.0~12.5 |
||||||||
ORANGE |
H401OD | H401OD+ | H401OD-3 | H401OD+3 | 630 |
100 |
2.0V |
1.4~3.5 |
||||||||
YELLOW |
H401YD | H401YD+ | H401YD-3 | H401YD+3 | 600 |
100 |
2.1V |
5.0~12.5 |
||||||||
GREEN |
H401GD | H401GD+ | H401GD-3 | H401GD+3 | 570 |
100 |
2.2V |
5.0~12.5 |
||||||||
BLUE |
H401SFD | H401SFD+ | H401SFD-3 | H401SFD+3 | 470 |
100 |
3.6V |
5.0~12.5 |
||||||||
| LED EMITING COLOR | COLORED TRANSPARENCY LEDS MODEL NO. |
|
|
|
|
|||||||||||
FIG.A. |
FIG.B. |
FIG.C. |
FIG.D |
(nm) |
@VR=5V |
@IF=20mA |
IF=20mA |
|||||||||
RED |
H401HT | H401HT+ | H401HT-3 | H401HT+3 | 695 |
100 |
2.2V |
1.4~3.5 |
||||||||
HI-EFF RED |
H401ET | H401ET+ | H401ET-3 | H401ET+3 | 635 |
100 |
1.8V |
5.0~12.5 |
||||||||
ORANGE |
H401OT | H401OT+ | H401OT-3 | H401OT+3 | 630 |
100 |
2.0V |
1.4~3.5 |
||||||||
YELLOW |
H401YT | H401YT+ | H401YT-3 | H401YT+3 | 600 |
100 |
2.1V |
5.0~12.5 |
||||||||
GREEN |
H401GT | H401GT+ | H401GT-3 | H401GT+3 | 570 |
100 |
2.2V |
5.0~12.5 |
||||||||
BLUE |
H401SFT | H401SFT+ | H401SFT-3 | H401SFT+3 | 470 |
100 |
3.6V |
5.0~12.5 |
||||||||
 |
¡@ |  |
