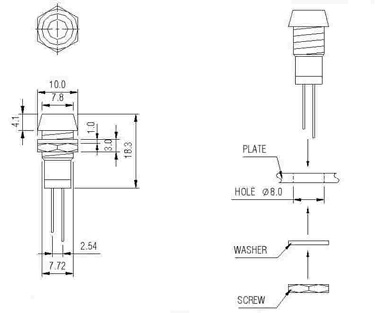

5.0 mm LED INDICATOR
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA | |
Led lamp lens type |
Diffusion |
Transparency |
lntensity(mcd) |
|
|
|
Remark |
|||||||||
 |
Colored |
Milky |
Colored |
Colorless |
Diffusion |
Coler |
||||||||||
RED |
I501HD |
0 |
0 |
0 |
5 |
0 |
695nm |
202V |
60° |
0 |
||||||
Green |
I501GD |
0 |
0 |
0 |
20 |
0 |
570nm |
2.2V |
60° |
0 |
||||||
Yeiiow |
I501YD |
0 |
0 |
0 |
15 |
0 |
590nm |
2.1V |
60° |
0 |
||||||
 |
¡@ |  |
Remark |
1.Typical forward corrent 10~20mA , MAXimum forward current 20mA |
2.Solder Temperature 1.6 mm Below Seating Plane less 5 seconds at 260°C +5°C -30°C |
3.Peak Foward current Per Dice , Duty cycle 1/10 , 10kHz , MAXimum 120mA |
4.Operating Temperature From -25°C to 85°C |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2698-9798 FAX:886-2-2698-3818 4F-5 NO.79,SEC.1,HSIN TAI WU ROAD,HSI-CHIH, TAIPEI HSIEN,TAIWAN R.O.C. |
