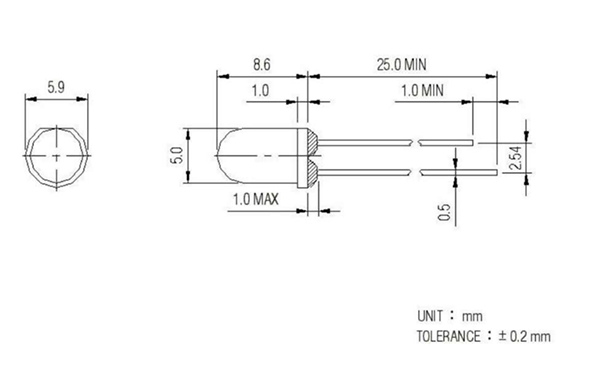

DIA 5 mm INFRARED EMITTED DIODE
|
|
 |
JOINSCAN'S 5mm LED LAMP | Tester : OPTO Meter S370@20mA | |
MODEL NO. |
LENS COLOR
|
ELECTRICAL ＆ OPTICAL CHARACTERISTIC |
|||||||||
VIEW ANGEL 2θ 1/2 |
|
|
|
||||||||
≦15° |
25° |
≧35° |
|||||||||
L503T1-940＜ |
L503T1-940 | L503T1-940＞ | WATER CLEAR | 940nm |
1.4V
|
3.0 mW |
|||||
L503T2-940＜ |
L503T2-940 | L503T2-940＞ | BLACK COLOR | ||||||||
L503T3-940＜ |
L503T3-940 | L503T3-940＞ | BLUE TRANSPARENT | ||||||||
L503T1-880＜ |
L503T1-880 | L503T1-880＞ | WATER CLEAR | 880nm |
1.7V
|
5.0 mW |
|||||
L503T2-880＜ |
L503T2-880 | L503T2-880＞ | BLACK COLOR | ||||||||
L503T3-880＜ |
L503T3-880 | L503T3-880＞ | BLUE TRANSPARENT | ||||||||
L503T1-850＜ |
L503T1-850 | L503T1-850＞ | WATER CLEAR | 850nm |
1.7V
|
10.0 mW |
|||||
L503T2-850＜ |
L503T2-850 | L503T2-850＞ | BLACK COLOR | ||||||||
L503T3-850＜ |
L503T3-850 | L503T3-850＞ | BLUE TRANSPARENT | ||||||||
 |
¡@ |  |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2698-9798 FAX:886-2-2698-3818 4F-5 NO.79,SEC.1,HSIN TAI WU ROAD,HSI-CHIH, TAIPEI HSIEN,TAIWAN R.O.C. |
