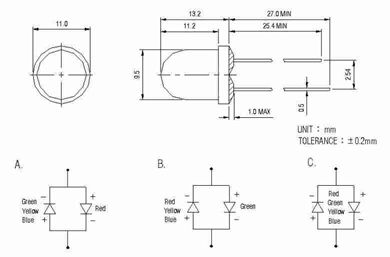

10mm BICOLOR LED LAMP
.JPG) |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA | |
| PIN FUNCTION | Diffusion TYPE |
CLEAR TYPE |
WAVE LENGTH (nm) | IR MAX (uA) VR=5V | VF (V) iF=20mA | LUMINOUS INTENSITY IF=20mA | VIew Angle | Remark | ||||
A |
B |
C |
A |
B |
C |
|||||||
|
MODAL ON. |
MODAL ON. |
MODAL ON. |
MODAL ON. |
MODAL ON. |
MODAL ON. |
||||||
| RED | 0 |
0 |
B107SM |
0 |
0 |
B107SC |
660 | 100 | 1.8 | 375/750mcd | 60°/15° | |
| RED | 660 | 100 | 1.8 | 375/750mcd | 60°/15° | |||||||
| GREEN | 0 |
0 |
B107GM |
0 |
0 |
B107GC |
570 | 100 | 2.2 | 150/375mcd | 60°/15° | |
| GREEN | 570 | 100 | 2.2 | 150/375mcd | 60°/15° | |||||||
| YELLOW | 0 |
0 |
B107YM |
0 |
0 |
B107YC |
600 | 100 | 2.0 | 150/375mcd | 60°/15° | |
| YELLOW | 600 | 100 | 2.0 | 115/280mcd | 60°/15° | |||||||
| BLUE | 0 |
0 |
B107FM |
0 |
0 |
B107FC |
470 | 100 | 3.6 | 115/280mcd | 60°/15° | |
| BLUE | 470 | 100 | 3.6 | 375/1125mcd | 60°/15° | |||||||
| RED | B1071M |
B107M+ |
0 |
B1071C |
B1071C+ |
0 |
660 | 100 | 1.8 | 375/1125mcd | 60°/15° | |
| GREEN | 570 | 100 | 2.2 | 375/750mcd | 60°/15° | |||||||
| RED | B1072M |
0 |
0 |
B1072C |
0 |
0 |
660 | 100 | 1.8 | 150/375mcd | 60°/15° | |
| YELLOW | 600 | 100 | 2.0 | 375/750mcd | 60°/15° | |||||||
| RED | B1076M |
0 |
0 |
B1076C |
0 |
0 |
660 | 100 | 1.8 | 115/7280mcd | 60°/15° | |
| BLUE | 470 | 100 | 3.6 | 375/1125mcd | 60°/15° | |||||||
| GREEN | 0 |
B107DM |
0 |
0 |
B107DC |
0 |
570 | 100 | 2.2 | 150/375mcd | 60°/15° | |
| YELLOW | 600 | 100 | 2.0 | 115/280mcd | 60°/15° | |||||||
| GREEN | 0 |
B1074M |
0 |
0 |
B1074C |
0 |
570 | 100 | 2.2 | 150/375mcd | 60°/15° | |
| BLUE | 470 | 100 | 3.6 | 375/1125mcd | 60°/15° | |||||||
 |
¡@ |  |
