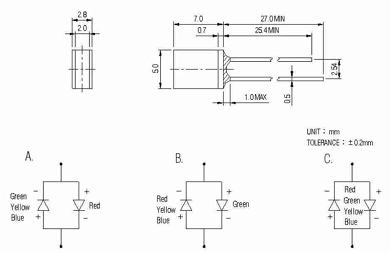

2X5mm BICOLOR LED LAMP

Download PDF File (KB)

JOINSCAN'S LED

Tester : OPTO Meter S370@20mA

PIN FUNCTION	Diffusion TYPE			CLEAR TYPE			WAVE LENGTH (nm)	IR MAX (uA) VR=5V	VF (V) iF=20mA	LUMINOUS INTENSITY IF=20mA	VIew Angle	Remark
	A	B	C	A	B	C
EMITTING COLOR	MODEL NO.	MODEL NO.	MODEL NO.	MODEL NO.	MODEL NO.	MODEL NO.
RED	0	0	L258SM	0	0	L258SC	660	100	1.8	15/30mcd	110°
RED							660	100	1.8	15/30mcd	110°
GREEN	0	0	L258GM	0	0	L258GC	570	100	2.2	7/15mcd	110°
GREEN							570	100	2.2	7/15mcd	110°
YELLOW	0	0	L258YM	0	0	L258YC	600	100	2.0	5/10mcd	110°
YELLOW							600	100	2.0	5/10mcd	110°
BLUE	0	0	L258FM	0	0	L258FC	470	100	3.6	15/50mcd	110°
BLUE							470	100	3.6	15/50mcd	110°
RED	L258S1M	L2581m+	0	L2581C	L2581C+	0	660	100	1.8	15/30mcd	110°
GREEN							570	100	2.2	7/15mcd	110°
RED	L2582M	0	0	L2582C	0	0	660	100	1.8	15/30mcd	110°
YELLOW							600	100	2.0	5/10mcd	110°
RED	L2586M	0	0	L2586C	0	0	660	100	1.8	15/30mcd	110°
BLUE							470	100	3.6	15/50mcd	110°
GREEN	0	L258DN	0	0	L258DC	0	570	100	2.2	7/15mcd	110°
YELLOW							600	100	2.0	5/10mcd	110°
GREEN	0	L2584M	0	0	L2584C	0	570	100	2.2	7/15mcd	110°
BLUE							470	100	3.6	15/50mcd	110°
