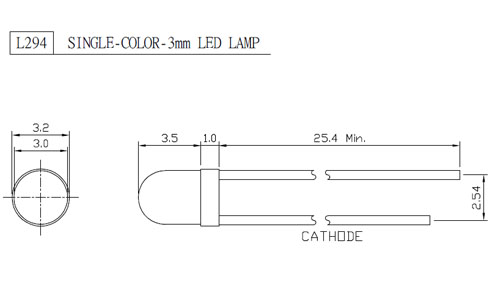

SINGLE COLOR 3mm LED LAMP

Download PDF File
(KB)



JOINSCAN'S LED
Tester : OPTO Meter S370@20mA
Lens Type Diffusion Transparency Intensity(mcd) Wave Length Forward Voltage View Angle Remark
  Colored Milky Colored Colorless Diffusion Transparency
Low Cost Red
 L294HD       5   695nm 2.2V 15° ~60°
Low Cost Green
L294GD   L294GT   20 50 570nm 2.2V 15° ~60°
Low Cost Yellow
 L294YD   L294YT   15 37 590nm 2.1V 15° ~60°
Low Cost Orange Red
 L294ED   L294ET   25 50 635nm 2.0V 15° ~60°
Low Cost Orange
 L294OD   L294OT   25 50 630nm 2.0V 15° ~60°
Low Cost Amber
 L294AD   L294AT   15 37 600nm 2.1V 15° ~60°
Low Cost Purple
       L2947C   8 405nm 3.6V 15° ~60°
Low Cost Blue
      L314FC   8 430nm 3.6V 15° ~60°
Very Brignt Red
L294SD     L294SC 60 100 660nm 1.8V 15° ~60°
Super Bright Red
L294UD     L294UC 120 150 660nm 1.8V 15° ~60°
Ultra Bright Red
L294ZD     L294ZC 200 300 660nm 1.8V 15° ~60°
Very Right Green
      L294WC   600 660nm 1.8V 15° ~60°
Super Bright Green
      L294GCS   150 571nm 2.2V 15° ~60°
Ultra Bright Green
      L294GCU   300 571nm 2.2V 15° ~60°
Ultra Bright Pure Green
      L294GCZ   1000 574nm 2.2V 15° ~60°
Ultra Bright Bluish Green
      L294GP   1000 525nm 2.2V 15° ~60°
Bright Yellow
      L294GCW   1000 505nm 3.4V 15° ~60°
Ultra Bright Bluish Green
      L294GCS   200 585nm 2.2V 15° ~60°
Very Bright Yellow
      L294YCU   300 590nm 2.2V 15° ~60°
Super Bright Yellow
      L294YCZ   500 590nm 2.2V 15° ~60°
Ultra Bright Yellow
      L294YCW   1000 590nm 2.2V 15° ~60°
Bright Orange
       L294YCS   300 615~635nm 1.8V 15° ~60°
Very Bright Orange
       L294OCU   500 615~635nm 1.8V 15° ~60°
Super Bright Orange
       L294OCZ   750 615~635nm 1.8V 15° ~60°
Ultra Bright Orange
      L294OCW   1000 615~635nm 1.8V 15° ~60°
Bright Blue
      L294OCS   150 470nm 3.6V 15° ~60°
Very Bright Blue
      L294FCU   300 470nm 3.6V 15° ~60°
Super Bright Blue
      L294FCZ   500 470nm 3.6V 15° ~60°
Ultra Bright Blue
      L294FCW   1000 470nm 3.6V 15° ~60°
Bright White
      L294F3CS   300 470~590nm 3.6V 15° ~60°
Very Bright White
      L2943CU   500 470~580nm 3.6V 15° ~60°
Super Bright White
      L2943CZ   750 470~590nm 3.6V 15° ~60°
Ultra Bright White
      L2943CW   1500 470~590nm 3.6V 15° ~60°
