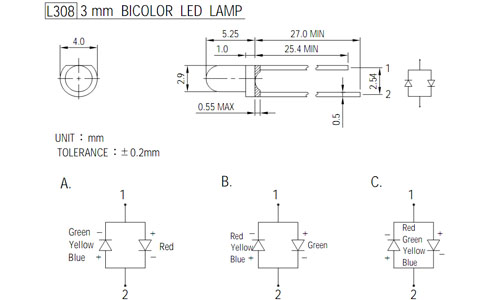

3mm BI-COLOR LED LAMP

Download PDF File (KB)

JOINSCAN'S LED

Tester : OPTO Meter S370@20mA

PIN FUNCTION	Diffusion TYPE			CLEAR TYPE			WAVE LENGTH (nm)	IR MAX (uA) VR=5V	VF (V) iF=20mA	LUMINOUS INTENSITY IF=20mA	View Angle	Remark
	A	B	C	A	B	C
EMTTING COLOR	MODEL NO.	MODEL NO.	MODEL NO.	MODEL NO.	MODEL NO.	MODEL NO.
RED	0	0	L308SM	0	0	L308SC	660	100	1.8	75/150mcd	60°/15°
RED							660	100	1.8	75/150mcd	60°/15°
GREEN	0	0	L308GM	0	0	L308GC	570	100	2.2	30/75mcd	60°/15°
GREEN							570	100	2.2	30/75mcd	60°/15°
YELLOW	0	0	L308YM	0	0	L308YC	600	100	2.0	23/56mcd	60°/15°
YELLOW							600	100	2.0	23/56mcd	60°/15°
BLUE	0	0	L308FM	0	0	L308FC	470	100	3.6	75/225mcd	60°/15°
BLUE							470	100	3.6	75/225mcd	60°/15°
RED	L3081M	L3081M+ (L308CM)	0	L3081C	L3081C+ (L308CC)	0	660(635)	100	1.8	75/150mcd	60°/15°
GREEN							570	100	2.2	30/75mcd	60°/15°
RED	L3082M	0	0	L3082C	0	0	660	100	1.8	75/150mcd	60°/15°
YELLOW							600	100	2.0	23/56mcd	60°/15°
RED	L3086M	0	0	L3086C	0	0	660	100	1.8	75/150mcd	60°/15°
BLUE							470	100	3.6	75/225mcd	60°/15°
GREEN	0	L308DM	0	0	L308DC	0	570	100	2.2	30/75mcd	60°/15°
YELLOW							600	100	2.0	23/56mcd	60°/15°
GREEN	0	L3084M	0	0	L3084C	0	570	100	2.2	30/75mcd	60°/15°
BLUE							470	100	3.6	75/225mcd	60°/15°
