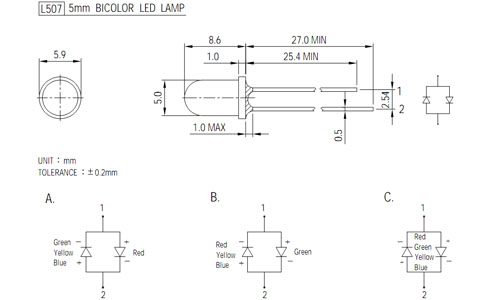

5mm BI-COLOR LED SIDE
kiou080721改
.JPG) |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA | |
| PIN FUNCTION | Diffusion TYPE |
CLEAR TYPE |
WAVE LENGTH (nm) | IR MAX (uA) VR=5V | VF (V) iF=20mA | LUMINOUS INTENSITY IF=20mA | View Angle | Remark | ||||
A |
B |
C |
A |
B |
C |
|||||||
|
MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | ||||||
RED |
0 |
0 |
L507SM |
0 |
0 |
L507SC |
660 | 100 | 1.8 | 75/150mcd | 60°/15° | 0 |
RED |
660 | 100 | 1.8 | 75/150mcd | 60°/15° | 0 | ||||||
GREEN |
0 |
0 |
L507GM |
0 |
0 |
L507GC |
570 | 100 | 2.2 | 30/75mcd | 60°/15° | 0 |
GREEN |
570 | 100 | 2.2 | 30/75mcd | 60°/15° | 0 | ||||||
YELLOW |
0 |
0 |
L507YM |
0 |
0 |
L507YC |
600 | 100 | 2.0 | 23/56mcd | 60°/15° | 0 |
YELLOW |
600 | 100 | 2.0 | 23/56mcd | 60°/15° | 0 | ||||||
BLUE |
0 |
0 |
L507FM |
0 |
0 |
L507FC |
470 | 100 | 3.6 | 75/225mcd | 60°/15° | 0 |
BLUE |
470 | 100 | 3.6 | 75/225mcd | 60°/15° | 0 | ||||||
RED |
L5071M |
L507S1M+(L507CM+) |
0 |
L5071C |
L5071C(L507CC+) |
0 |
660(635) | 100 | 1.8 | 75/150mcd | 60°/15° | 0 |
GREEN |
570 | 100 | 2.2 | 30/75mcd | 60°/15° | 0 | ||||||
RED |
L5072M |
0 |
0 |
L5072C |
0 |
0 |
660 | 100 | 1.8 | 75/150mcd | 60°/15° | 0 |
YELLOW |
600 | 100 | 2.0 | 23/56mcd | 60°/15° | 0 | ||||||
RED |
L5076M |
0 |
0 |
L5076C |
0 |
0 |
660 | 100 | 1.8 | 75/150mcd | 60°/15° | 0 |
BLUE |
470 | 100 | 3.6 | 75/225mcd | 60°/15° | V | ||||||
GREEN |
0 |
L507DM |
0 |
0 |
L507DC |
0 |
570 | 100 | 2.2 | 30/75mcd | 60°/15° | 0 |
YELLOW |
600 | 100 | 2.0 | 23/56mcd | 60°/15° | 0 | ||||||
GREEN |
0 |
L5074M |
0 |
0 |
L5074C |
0 |
570 | 100 | 2.2 | 30/75mcd | 60°/15° | 0 |
BLUE |
470 | 100 | 3.6 | 75/225mcd | 60°/15° | 0 | ||||||
 |
¡@ |  |
