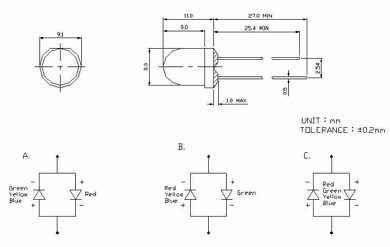

8mm BI-COLOR LED LAMP

Download PDF File (KB)

JOINSCAN'S LED

Tester : OPTO Meter S370@20mA

PIN FUNCTION	Diffusion TYPE			CLEAR TYPE			WAVE LENGTH (nm)	IR MAX (uA) VR=5V	VF (V) iF=20mA	LUMINOUS INTENSITY IF=20mA	View Angle	Remark
	A	B	C	A	B	C
EMITTING COLOR	MODEL NO.	MODEL NO.	MODEL NO.	MODEL NO.	MODEL NO.	MODEL NO.
RED	0	0	L807SM	0	0	L807SC	660	100	1.8	94/188mcd	60°/15°
RED							660	100	1.8	94/188mcd	60°/15°
GREEN	0	0	L807GM	0	0	L807GC	570	100	2.2	38/94mcd	60°/15°
GREEN							570	100	2.2	38/94mcd	60°/15°
YELLOW	0	0	L807YM	0	0	L807YC	600	100	2.0	29/70mcd	60°/15°
YELLOW							600	100	2.0	29/70mcd	60°/15°
BLUE	0	0	L807FM	0	0	L807FC	470	100	3.6	94/280mcd	60°/15°
BLUE							470	100	3.6	94/280mcd	60°/15°
RED	L8071M	L8071M+	0	L8071C	L8071C+	0	660	100	1.8	94/188mcd	60°/15°
GREEN							570	100	2.2	38/94mcd	60°/15°
RED	L8072M	0	0	L8072C	0	0	660	100	1.8	94/188mcd	60°/15°
YELLOW							600	100	2.0	29/70mcd	60°/15°
RED	L8076M	0	0	L8076C	0	0	660	100	1.8	94/188mcd	60°/15°
BLUE							470	100	3.6	94/281mcd	60°/15°
GREEN	0	L807DM	0	0	L807DC	0	570	100	2.2	38/94mcd	60°/15°
YELLOW							600	100	2.0	29/70mcd	60°/15°
GREEN	0	L8074M	0	0	L8074C	0	570	100	2.2	38/94mcd	60°/15°
BLUE							470	100	3.6	94/281mcd	60°/15°
