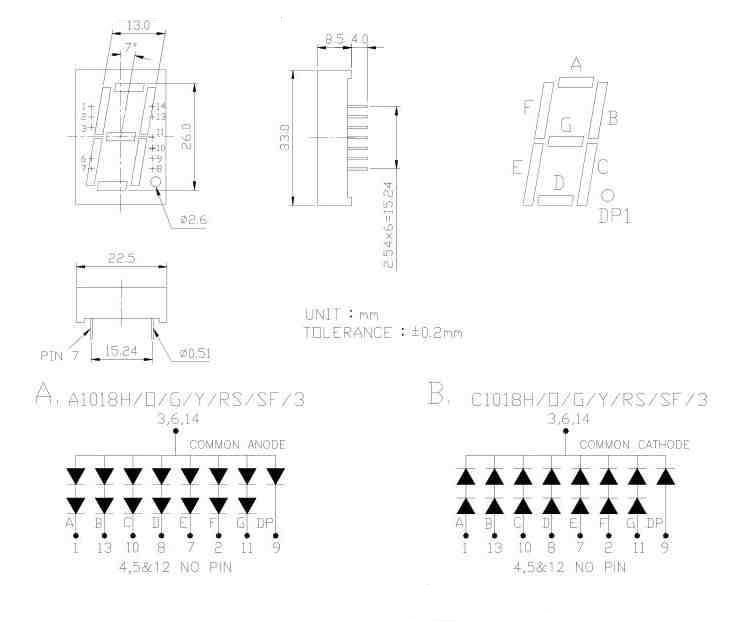

1.0"(25.4mm) SINGLE DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
| PIN FUNCTION | COMMON ANODE | COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
(nm) | VR=5V | IF=20mA | IF=20mA | ||||||||
GaP RED |
A1018H | 0 | 0 | C1018H | 0 | 0 | 695 | 100 | 4.4 | 0.6mcd | ||||||||
GaAsP ORANGE RED |
A1018O | 0 |
0 | C1018O | 0 | 0 | 630 | 100 | 4.0 | 4.0mcd | ||||||||
GaP GREEN |
A1018G | 0 | 0 | C1018G | 0 | 0 | 570 | 100 | 4.4 | 4.5mcd | ||||||||
GaP YELLOW |
A1018Y | 0 | C1018Y | 00 | 0 | 600 | 100 | 4.4 | 4.0mcd | |||||||||
GaAlAs RED |
A1018RS | 0 | 00 | A1018RS | 0 | 0 | 650 | 100 | 3.6 | 8.0mcd | ||||||||
GaAlAs RED |
0 | 00 | 0 | 0 | 00 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAlAs YELLOW GREEN |
0 | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
SiC BLUE |
A1018F | 0 | 0 | C1018F | 0 | 0 | 430 | 100 | 7.2 | 2.0mcd | ||||||||
ZnSe WHITE |
A10183 | 0 | 0 | C1018S3 | 0 | 0 | 485+ | 100 | 6.0 | 2.0mcd | ||||||||
 |
 |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2696-1188 FAX:886-2-2696-1098 5F NO. 98, SEC. 1, XINTAI 5TH ROAD, XIZHI DIST., NEW TAIPEI CITY 22102,TAIWAN |
