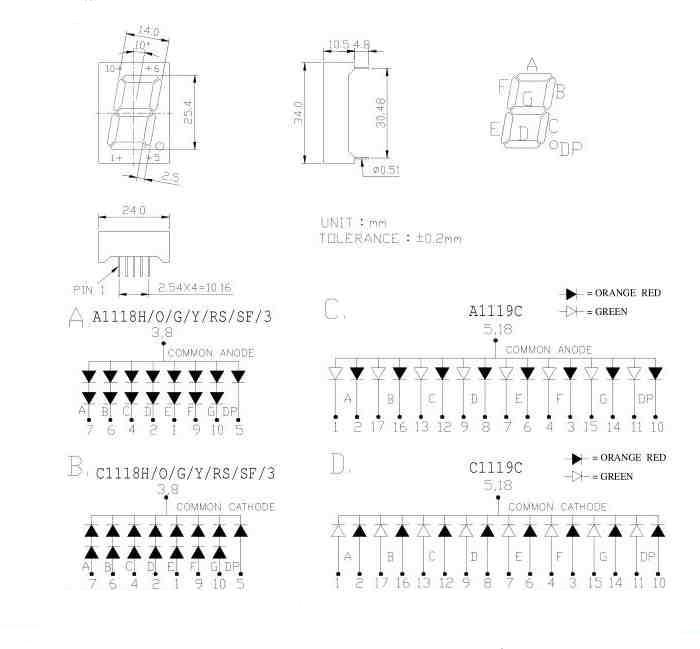

1.0" (25.4mm) SINGLE DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
(nm) | VR=5V | IF=20mA | IF=20mA | ||||||||
GaP RED |
A1118H |
0 | 0 | C1118H |
0 | 0 | 695 | 100 | 4.4 | 0.4mcd | ||||||||
GaAsP ORANGE RED |
A1118O |
A1119C |
0 | C1118O |
C1119C |
0 | 630 | 100 | 4.0 | 2.5mcd | ||||||||
GaP GREEN |
A1118G |
0 | C1118G |
0 | 570 | 100 | 4.4 | 4.5mcd | ||||||||||
GaP YELLOW |
A1118Y |
0 | C1118Y |
00 | 0 | 600 | 100 | 4.4 | 2.5mcd | |||||||||
GaAlAs RED |
A1118RS |
0 | 00 | A1118RS |
0 | 0 | 650 | 100 | 3.6 | 3.0mcd | ||||||||
GaAlAs RED |
0 | 00 | 0 | 0 | 00 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAlAs YELLOW GREEN |
0 | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
SiC BLUE |
A1118SF |
0 | 0 | C1118SF |
0 | 0 | 465±5 | 100 | 7.2 | 30mcd | ||||||||
ZnSe WHITE |
A11183 |
0 | 0 | C11183 |
0 | 0 | 485+ | 100 | 6.0 | 2.5mcd | ||||||||
 |
 |
