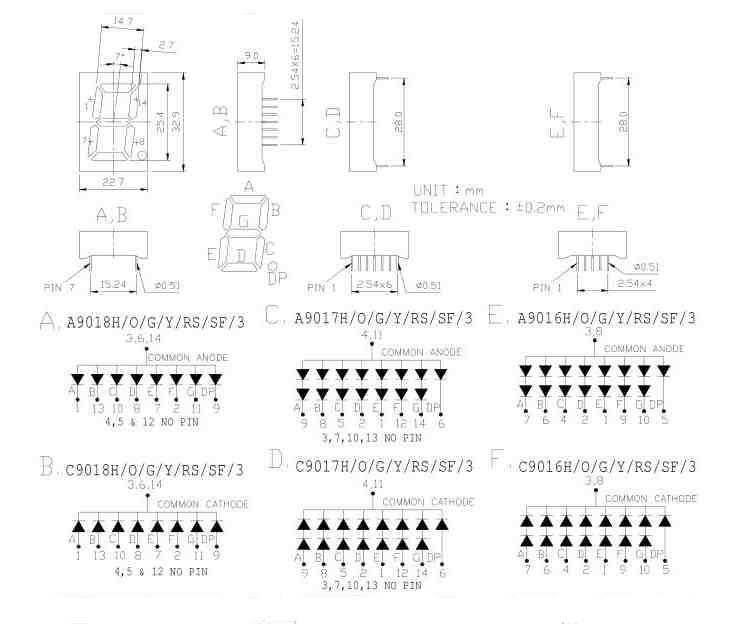

1.0"(25.mm) SINGLE DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
MADEL NO. |
MADEL NO. |
MADEL NO. |
MADEL NO. |
MADEL NO. |
MADEL NO. |
(nm) | VR=5V | IF=20mA | IF=20mA | ||||||||
GAP RED |
A9018H | A9017H | A9016H | C9018H | C9017H | C9016H | 695 | 100 | 4.4 | 0.4MCD | ||||||||
GaAsp PRANGE RED |
A9018O | A9017O | A9016O | C9018O | C9017O | C9016O | 630 | 100 | 4.0 | 2.5MCD | ||||||||
GaP GREEN |
A9018G | A9017G | A9016G | C9018G | C9017G | C9016G | 570 | 100 | 4.4 | 4.5MCD | ||||||||
GaP YELLOW |
A9018Y | A9017Y | A9016Y | C9018Y | C9017Y | C9016Y | 600 | 100 | 4.4 | 2.5MCD | ||||||||
GaAIAS RED |
A9018RS | A9017RS | A9016RS | C9018RS | C9017RS | C9016RS | 650 | 100 | 3.6 | 3.0MCD | ||||||||
GaAIAS RED |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAIAS YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |||||||||
SIC BLUE |
A9018SF | A9017SF | A9016SF | C9018SF | C9017SF | C9016SF | 465±5 | 100 | 7.2 | 30MCD | ||||||||
ZNSE WHJTE |
A90183 | A90173 | A90163 | C90183 | C90173 | C90163 | 485+ | 100 | 6.0 | 2.5MCD | ||||||||
 |
¡@ |  |
