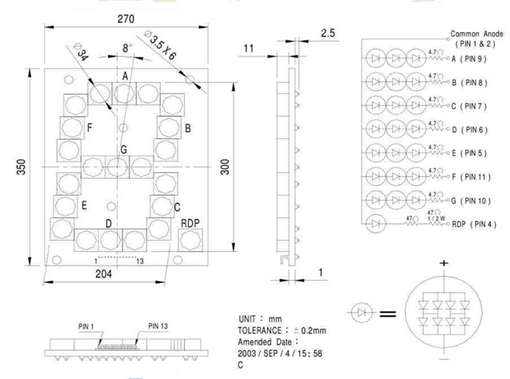

12"(300mm) SINGLE DIGIT

Download PDF File
(KB)


JOINSCAN'S LED
Tester : OPTO Meter S370@20mA
PIN
FUNCTION
PIN
FUNCTION
PIN
FUNCTION
1
COMMON
6
SEG.D
11
SEG.F
2
COMMON
7
SEG.C
12
NO CONNECTOR
3
NO CONNECTOR
8
SEG.B
13
NO CONNECTOR
4
RDP
9
SEG.A
0
0
5
SEG.E
10
SEG.G
0
0

PIN FUNCTION
COMMON ANODE
COMMON CATHODE
WAVE LENGTH
IR MAX (UA)
VF(v)
LUMINOUS INTENSITY
COLOR
 DIFFUSION TYPE CLEAR TYPE DIFFUSION TYPE CLEAR TYPE (MM) VR=20V IF=80mA IF=80mA
ULTRA RED
AS12URD AS12URC CS12URD CS12URC 645 100 12.0/SEG 50.0mcd
ULTRA GREEN
AS12UGD AS12URC CS12UGD CS12UGC 572 100 12.0/SEG 50.0mcd
ULTRA YELLOW
AS12UYD AS12URC CS12UYD CS12UYC 590 100 12.0/SEG 50.0mcd
ULTRA BLUE
AS12SFD AS12SRC CS12SFD CS12SFC 465±5 100 21.5/SEG 50.0mcd
  ¡@
