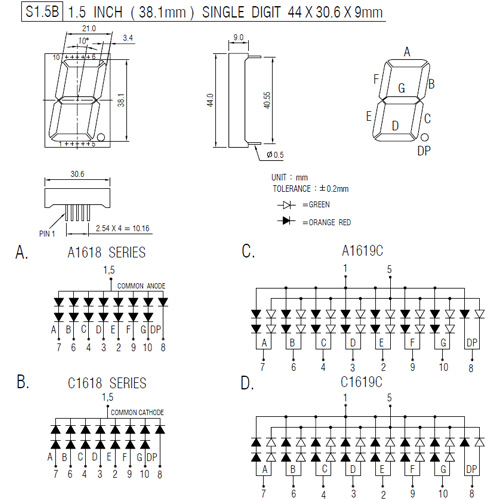

1.5 INCH SINGLE DIGIT SMALL TYPE
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMTTING COLOR |
MADEL NO. |
MADEL NO. |
MADEL NO. |
MADEL NO. |
MADEL NO. |
MADEL NO. |
(nm) | VR=5V | IF=20mA | IF=20mA | ||||||||
GAP RED |
A1618H | 0 | 0 | C1618H | 0 | 0 | 695 | 100 | 4.4 | 0.4MCD | ||||||||
GaAsp ORANGE RED |
A1618O | A1619C |
0 | C1618O | C1619C |
0 | 630 | 100 | 4.0 | 2.5MCD | ||||||||
GaP GREEN |
A1618G | 0 | C1618G | 0 | 570 | 100 | 4.4 | 4.5MCD | ||||||||||
GaP YELLOW |
A1618Y | 0 | C1618Y | 00 | 0 | 600 | 100 | 4.4 | 2.5MCD | |||||||||
GaAIAS RED |
A1618RS | 0 | 00 | C1618RS | 0 | 0 | 650 | 100 | 3.6 | 3.0MCD | ||||||||
GaAIAS RED |
0 | 00 | 0 | 0 | 00 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAIAS YELLOW GREEN |
0 | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
SIC BLUE |
A1618SF | 0 | 0 | C1618SF | 0 | 0 | 465±5 | 100 | 7.2 | 30MCD | ||||||||
ZNSE WHITE |
A16183 | 0 | 0 | C16183 | 0 | 0 | 485+ | 100 | 6.0 | 2.5MCD | ||||||||
 |
¡@ |  |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2698-9798 FAX:886-2-2698-3818 4F-5 NO.79,SEC.1,HSIN TAI WU ROAD,HSI-CHIH, TAIPEI HSIEN,TAIWAN R.O.C. |
