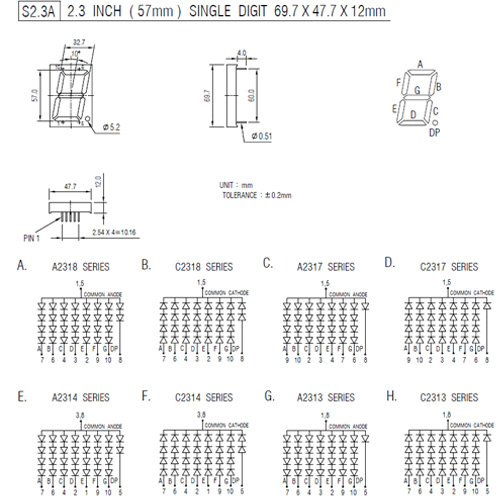

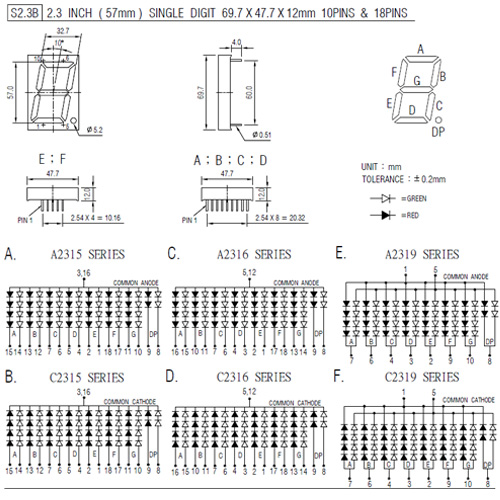

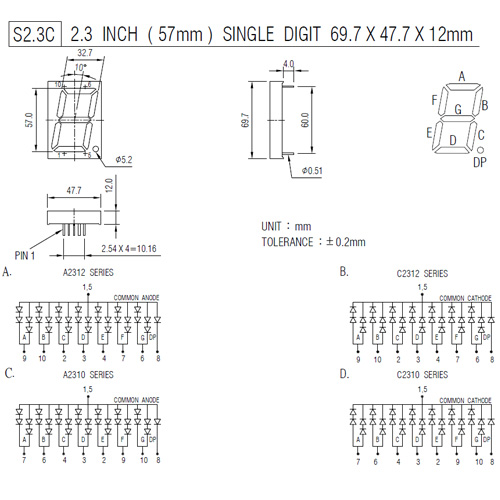

2.3"(57mm) SINGLE DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
PIN FUNCTION |
COMMON ANODE |
COMMON CATHODE |
|
|
|
|
||||||||||||||||
A |
C |
E |
G |
B |
D |
F |
H |
|||||||||||||||
EMITTING COLOR |
MADEL NO. |
MADEL NO. |
MADEL NO. |
MADEL NO. |
MADEL NO. |
MADEL NO. |
MADEL NO. |
MADEL NO. |
(nm) | VR=5V | IF=20mA | IF=20mA | ||||||||||
GAP RED |
A2318H | A2317H | A2314H | A2313H | C2318H | C2317H | C2314H | C2313H | 695 | 100 | 8.8 | 0.6MCD | ||||||||||
GaAsp ORANGE RED |
A2318O | A2317O | A2314O | A2313O | C2318O | C2317O | C2314O | C2313O | 630 | 100 | 8.0 | 4.0MCD | ||||||||||
GaP GREEN |
A2318G | A2317G | A2314G | A2313G | C2318G | C2317G | C2314G | C2313G | 570 | 100 | 8.8 | 4.5MCD | ||||||||||
GaP YELLOW |
A2318Y | A2317Y | A2314Y | A2313Y | C2318Y | C2317Y | C2314Y | C2313Y | 600 | 100 | 8.8 | 4.0MCD | ||||||||||
GaAIAS RED |
A2318RS | A2317RS | A2314RS | A2313RS | C2318RS | C2317RS | C2314RS | C2313RS | 650 | 100 | 7.2 | 8.0MCD | ||||||||||
GaAIAS RED |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||||||||
GaAIAS YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | |||||||||||||||
SIC BLUE |
A2318SF | A2317SF | A2314SF | A2313SF | C2318SF | C2317SF | C2314SF | C2313SF | 465±5 | 100 | 14.4 | 30MCD | ||||||||||
ZNSE WHJTE |
A23183 | A23173 | A23143 | A23133 | C23183 | C23173 | C23143 | C23133 | 485+ | 100 | 12.0 | 2.0MCD | ||||||||||
 |
¡@ |  |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2698-9798 FAX:886-2-2698-3818 4F-5 NO.79,SEC.1,HSIN TAI WU ROAD,HSI-CHIH, TAIPEI HSIEN,TAIWAN R.O.C. |
