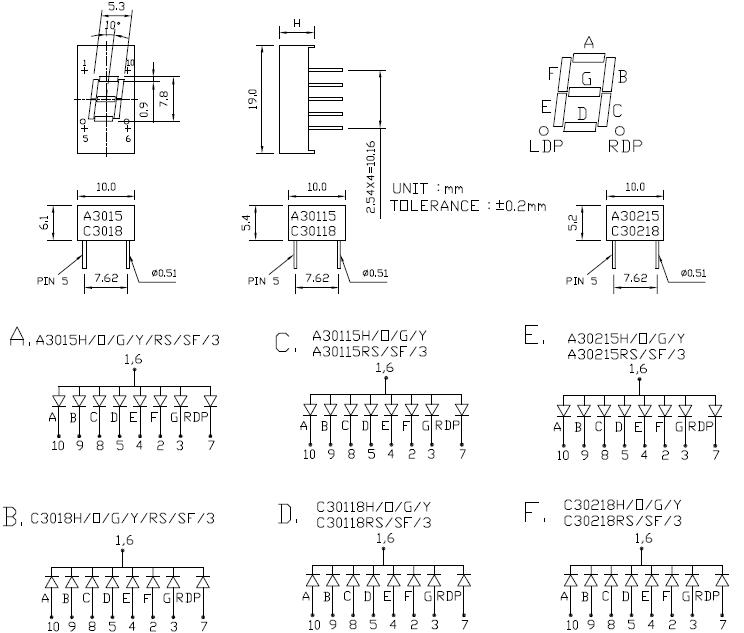

0.3"(7.8mm) SINGLE DIGIT {10 PINS}
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE | COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
(nm) | VR=5V | IF=20mA | IF=20mA | ||||||||
GaP RED |
A3015H | A30115H | A30215H | C3018H | C30118H | C30218H | 695 | 100 | 2.2 | 0.4MCD | ||||||||
GaAsp ORANGE RED |
A3015O | A30115O | A30215O | C3018O | C30118O | C30218O | 630 | 100 | 2.0 | 2.5MCD | ||||||||
GaP GREEN |
A3015G | A30115G | A30215G | C3018G | C30118G | C30218G | 570 | 100 | 2.2 | 4.5MCD | ||||||||
GaP YELLOW |
A3015Y | A30115Y | A30215Y | C3018Y | C30118Y | C30218Y | 600 | 100 | 2.2 | 2.5MCD | ||||||||
GaAIAS RED |
A3015RS | A30115RS | A30215RS | C3018RS | C30118RS | C30218RS | 650 | 100 | 1.8 | 3.0MCD | ||||||||
GaAIAS RED |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAIAS YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |||||||||
SIC BLUE |
A3015SF | A30115SF | A30215SF | C3018SF | C30118SF | C30218SF | 465±5 | 100 | 3.6 | 30MCD | ||||||||
ZNSE WHITE |
A30153 | A301153 | A302153 | C30183 | C301183 | C302183 | 485+ | 100 | 3.0 | 2.5MCD | ||||||||
 |
¡@ |  |
