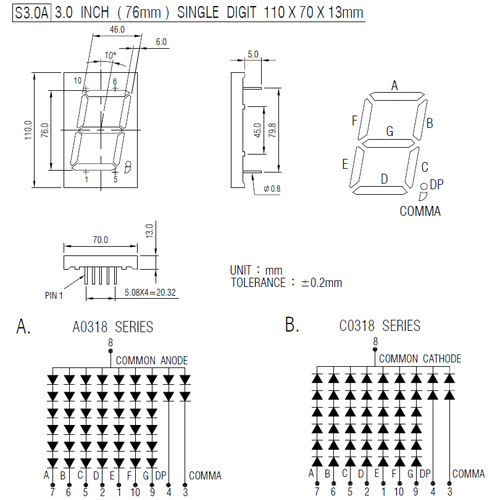

3.0" SINGLE DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMTTING COLOR |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
(nm) | VR=5V | IF=20mA | IF=20mA | ||||||||
GaP RED |
A0318H | C0318H | 695 | 100 | 13.2 | 0.6MCD | ||||||||||||
GaAsp ORANGE RED |
A0318O | C0318O | 630 | 100 | 12.0 | 4.0MCD | ||||||||||||
GaP GREEN |
A0318G | C0318G | 570 | 100 | 13.2 | 4.5MCD | ||||||||||||
GaP YELLOW |
A0318Y | C0318Y | 600 | 100 | 13.2 | 4.0MCD | ||||||||||||
GaAIAS RED |
A0318RS | A0318RS | 650 | 100 | 10.8 | 8.0MCD | ||||||||||||
GaAIAS RED |
||||||||||||||||||
GaAIAS YELLOW GREEN |
||||||||||||||||||
SIC BLUE |
A0318SF | C0318SF | 465±5 | 100 | 21.6 | 30MCD | ||||||||||||
ZNSE WHITE |
A03183 | C0318S3 | 485+ | 100 | 18.0 | 2.0MCD | ||||||||||||
 |
¡@ |  |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2698-9798 FAX:886-2-2698-3818 4F-5 NO.79,SEC.1,HSIN TAI WU ROAD,HSI-CHIH, TAIPEI HSIEN,TAIWAN R.O.C. |
