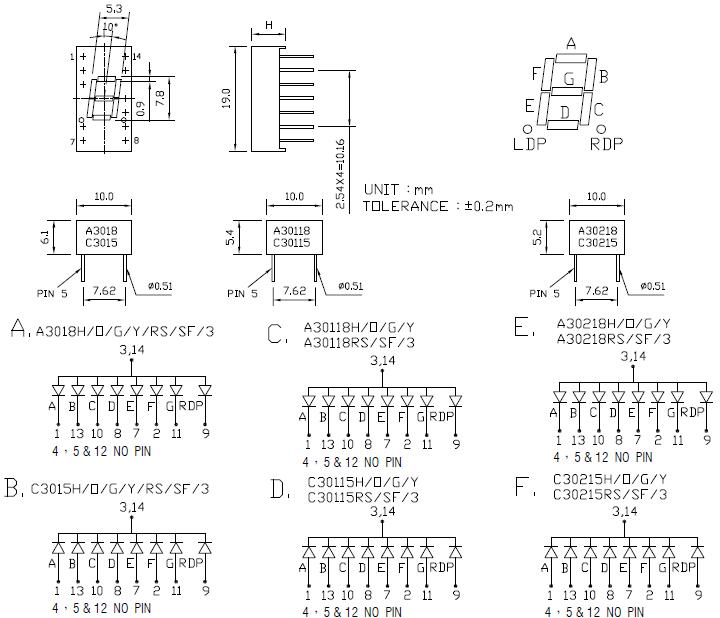

0.3" SINGLE DIGIT (11 PINS)
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE | COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
(nm) | VR=5V | IF=20mA | IF=20mA | ||||||||
GaP RED |
A3018H | A30118H | A30218H | C3015H | C30115H | C30215H | 695 | 100 | 2.2 | 0.4MCD | ||||||||
GaAsp ORANGE RED |
A3018O | A30118O | A30218O | C3015O | C30115O | C30215O | 630 | 100 | 2.0 | 2.5MCD | ||||||||
GaP GREEN |
A3018G | A30118G | A30218G | C3015G | C30115G | C30215G | 570 | 100 | 2.2 | 4.5MCD | ||||||||
GaP YELLOW |
A3018Y | A30118Y | A30218Y | C3015Y | C30115Y | C30215Y | 600 | 100 | 2.2 | 2.5MCD | ||||||||
GaAIAS RED |
A3018RS | A30118RS | A30218RS | C3015RS | C30115RS | C30215RS | 650 | 100 | 1.8 | 3.0MCD | ||||||||
GaAIAS RED |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAIAS YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |||||||||
SIC BLUE |
A3018SF | A30118SF | A30218SF | C3015SF | C30115SF | C30215SF | 465±5 | 100 | 3.6 | 30MCD | ||||||||
ZNSE WHITE |
A30183 | A301183 | A302183 | C30153 | C301153 | C302153 | 485+ | 100 | 3.0 | 2.5MCD | ||||||||
 |
¡@ |  |
