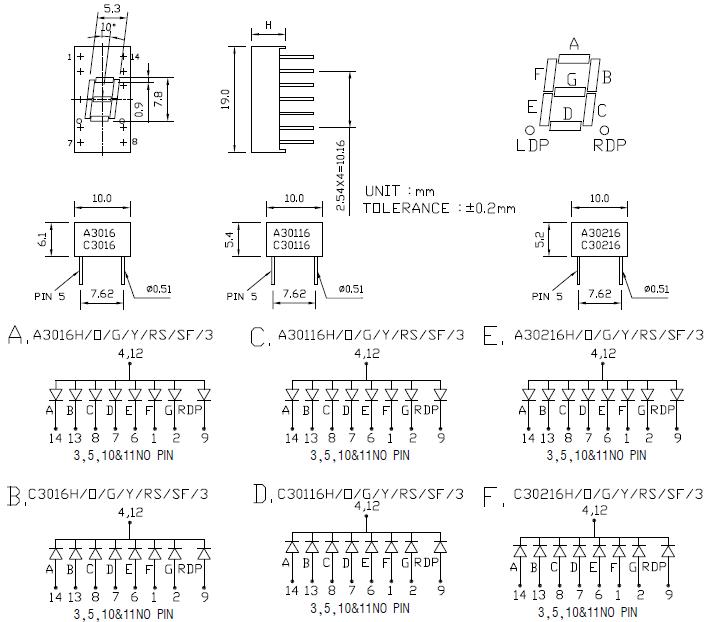

0.3" SINGLE DIGIT (10 PINS PIN 4&12 COMMON)
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE | COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
(nm) | VR=5V | IF=20mA | IF=20mA | ||||||||
GaP RED |
A3016H | A30116H | A30216H | C3016H | C30116H | C30216H | 695 | 100 | 2.2 | 0.4MCD | ||||||||
GaAsp PRANGE RED |
A3016O | A30116O | A30216O | C3016O | C30116O | C30216O | 630 | 100 | 2.0 | 2.5MCD | ||||||||
GaP GREEN |
A3016G | A30116G | A30216G | C3016G | C30116G | C30216G | 570 | 100 | 2.2 | 4.5MCD | ||||||||
GaP YELLOW |
A3016Y | A30116Y | A30216Y | C3016Y | C30116Y | C30216Y | 600 | 100 | 2.2 | 2.5MCD | ||||||||
GaAIAS RED |
A3016RS | A30116RS | A30216RS | C3016RS | C30116RS | C30216RS | 650 | 100 | 1.8 | 3.0MCD | ||||||||
GaAIAS RED |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAIAS YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |||||||||
SIC BLUE |
A3016SF | A30116SF | A30216SF | C3016SF | C30116SF | C30216SF | 465±5 | 100 | 3.6 | 30MCD | ||||||||
ZNSE WHITE |
A30163 | A301163 | A302163 | C30163 | C301163 | C302163 | 485+ | 100 | 3.0 | 2.5MCD | ||||||||
 |
¡@ |  |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2698-9798 FAX:886-2-2698-3818 4F-5 NO.79,SEC.1,HSIN TAI WU ROAD,HSI-CHIH, TAIPEI HSIEN,TAIWAN R.O.C. |
