0.31" SINGLE DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |

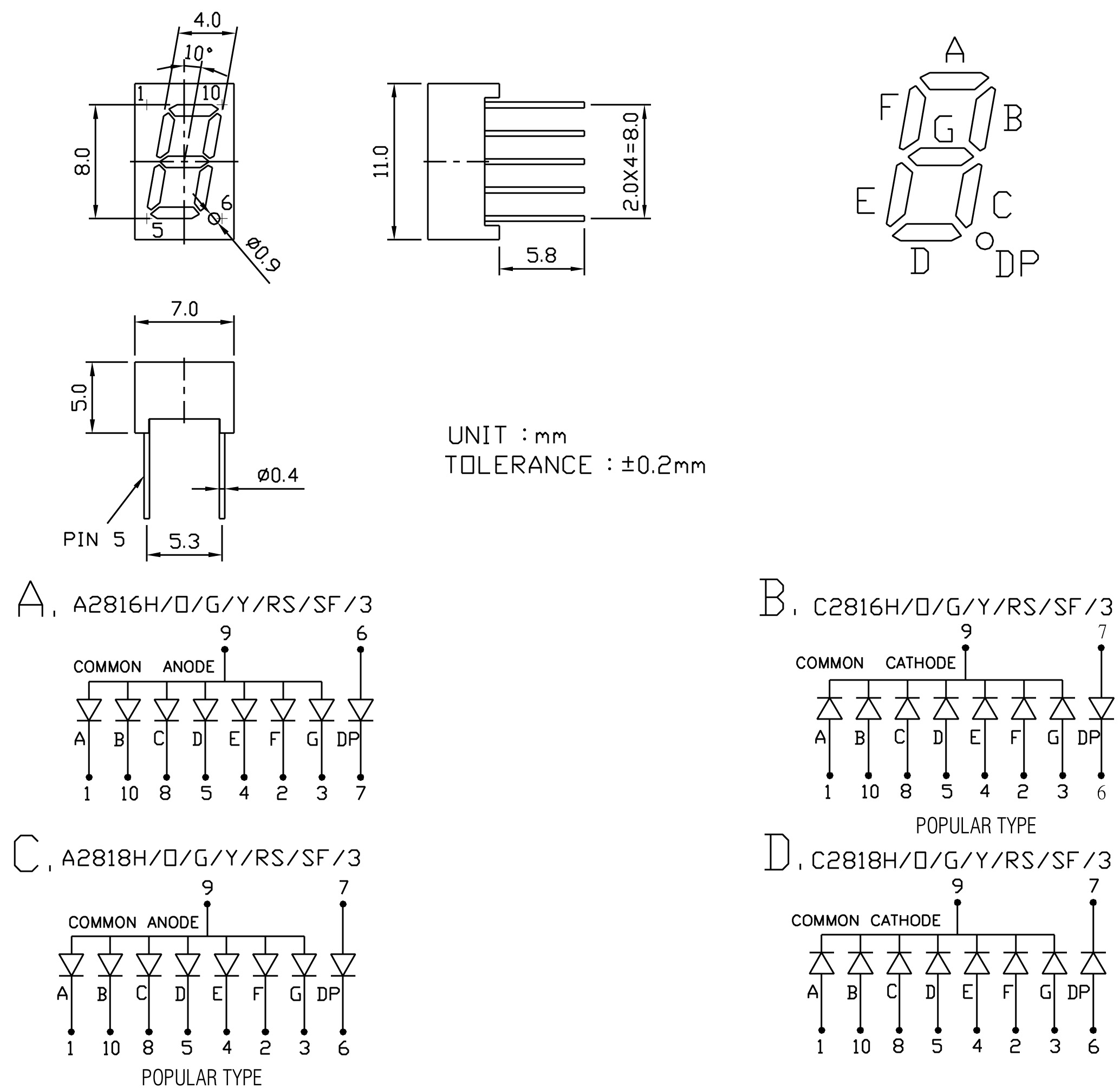

| PIN FUNCTION | COMMON ANODE | COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
MODEL NO. |
(nm) | VR=5V | IF=20mA | IF=20mA | ||||||||
GAP RED |
A2816H | A2818H | 0 | C2816H | C2818H | 0 | 695 | 100 | 2.2 | 0.4MCD | ||||||||
GaAsp ORANGE RED |
A2816O | A2818O | 0 | C2816O | C2818O | 0 | 630 | 100 | 2.0 | 2.5MCD | ||||||||
GaP GREEN |
A2816G | A2818G | 0 | C2816G | C2818G | 0 | 570 | 100 | 2.2 | 4.5MCD | ||||||||
GaP YELLOW |
A2816Y | A2818Y | 0 | C2816Y | C2818Y | 0 | 600 | 100 | 2.2 | 2.5MCD | ||||||||
GaAIAS RED |
A2816RS | A2818RS | 0 | C2816RS | C2818RS | 0 | 650 | 100 | 1.8 | 3.0MCD | ||||||||
GaAIAS RED |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAIAS YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
SIC BLUE |
A2816F | A2818F | 0 | C2816F | C2818F | 0 | 430 | 100 | 3.6 | 2.5MCD | ||||||||
ZNSE WHITE |
A28163 | A28183 | 0 | C28163 | C28183 | 0 | 485+ | 100 | 3.0 | 2.5MCD | ||||||||
 |
 |
