0.32" SINGLE DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |

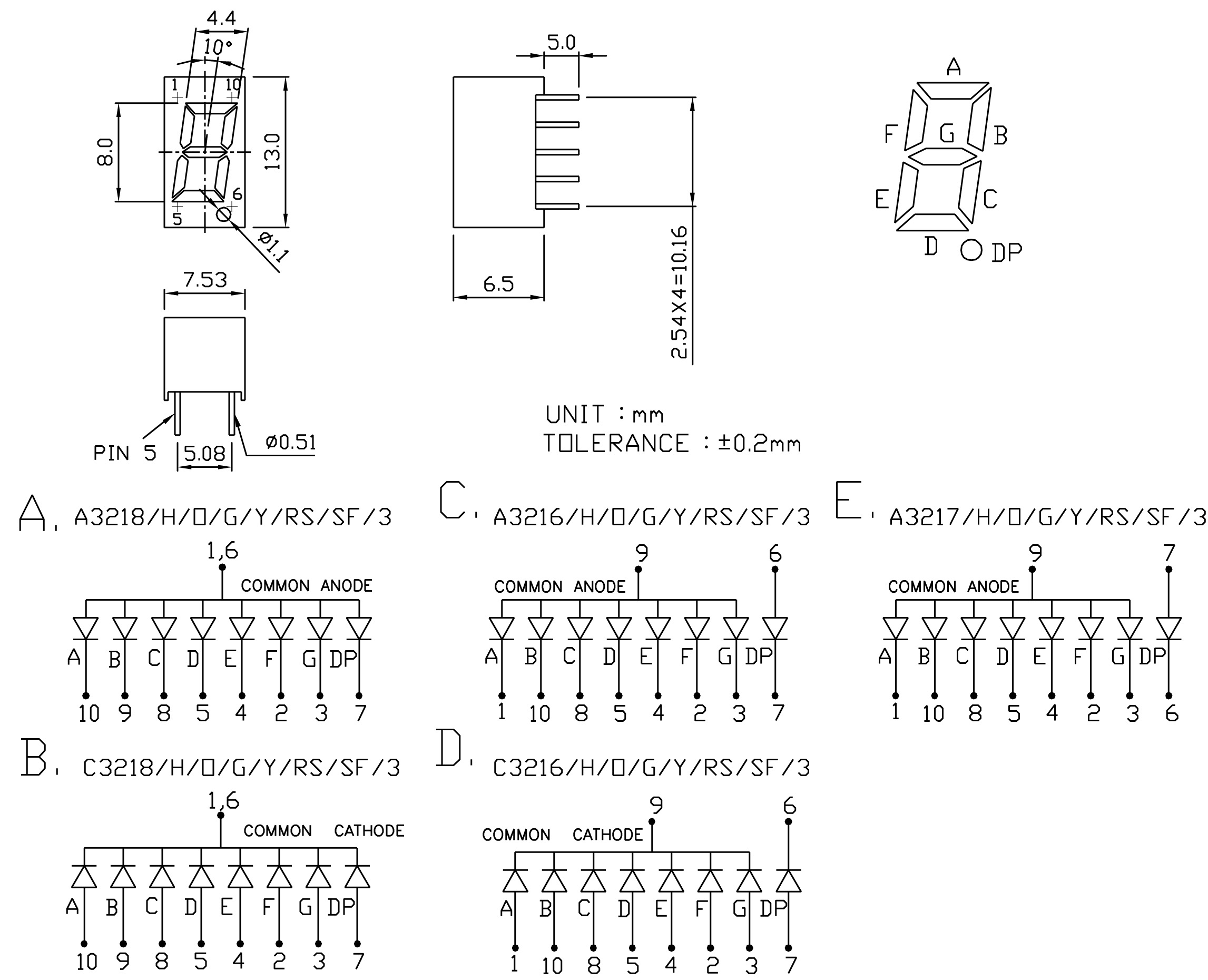

| PIN FUNCTION | COMMON ANODE | COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMTTING COLOR |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
(nm) | VR=5V | IF=20mA | IF=20mA | ||||||||
GAP RED |
A3218H | A3216H | A3217H | C3218H | C3216H | 0 | 695 | 100 | 2.2 | 0.4MCD | ||||||||
GaAsp ORANGE RED |
A3218O | A3216O | A3217O | C3218O | C3216O | 0 | 630 | 100 | 2.0 | 2.5MCD | ||||||||
GaP GREEN |
A3218G | A3216G | A3217G | C3218G | C3216G | 0 | 570 | 100 | 2.2 | 4.5MCD | ||||||||
GaP YELLOW |
A3218Y | A3216Y | A3217Y | C3218Y | C3216Y | 0 | 600 | 100 | 2.2 | 2.5MCD | ||||||||
GaAIAS RED |
A3218RS | A3216RS | A3217RS | C3218RS | C3216RS | 0 | 650 | 100 | 1.8 | 3.0MCD | ||||||||
GaAIAS RED |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAIAS YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
SIC BLUE |
A3218F | A3216F | A3217F | C3218F | C3216F | 0 | 430 | 100 | 3.6 | 2.5MCD | ||||||||
ZNSE WHITE |
A32183 | A32163 | A32173 | C32183 | C32163 | 0 | 485+ | 100 | 3.0 | 2.5MCD | ||||||||
 |
¡@ |  |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2698-9798 FAX:886-2-2698-3818 4F-5 NO.79,SEC.1,HSIN TAI WU ROAD,HSI-CHIH, TAIPEI HSIEN,TAIWAN R.O.C. |
