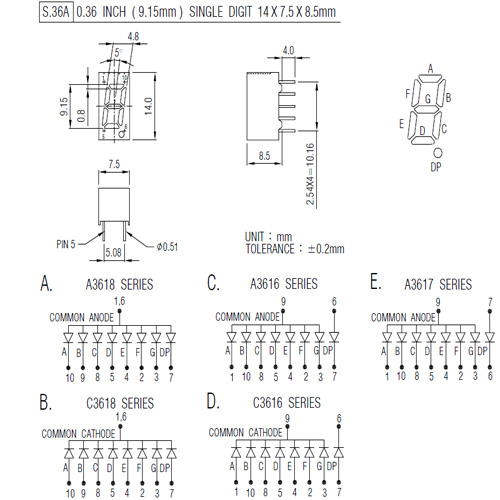

0.36 " (9mm) SINGLE DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE | COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMTTING COLOR |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
(nm) | VR=5V | IF=20mA | IF=20mA | ||||||||
GAP RED |
A3618H | A3616H | A3617H | C3618H | C3616H | 0 | 695 | 100 | 2.2 | 0.4MCD | ||||||||
GaAsp ORANGE RED |
A3618O | A3616O | A3617O | C3618O | C3616O | 0 | 630 | 100 | 2.0 | 2.5MCD | ||||||||
GaP GREEN |
A3618G | A3616G | A3617G | C3618G | C3616G | 0 | 570 | 100 | 2.2 | 4.5MCD | ||||||||
GaP YELLOW |
A3618Y | A3616Y | A3617Y | C3618Y | C3616Y | 0 | 600 | 100 | 2.2 | 2.5MCD | ||||||||
GaAIAS RED |
A3618RS | A3616RS | A3617RS | C3618RS | C3616RS | 0 | 650 | 100 | 1.8 | 3.0MCD | ||||||||
GaAIAS RED |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAIAS YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
SIC BLUE |
A3618F | A3616F | A3617F | C3618F | C3616F | 0 | 430 | 100 | 3.6 | 2.5MCD | ||||||||
ZNSE WHITE |
A36183 | A36163 | A36173 | C36183 | C36163 | 0 | 485+ | 100 | 3.0 | 2.5MCD | ||||||||
 |
¡@ |  |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2698-9798 FAX:886-2-2698-3818 4F-5 NO.79,SEC.1,HSIN TAI WU ROAD,HSI-CHIH, TAIPEI HSIEN,TAIWAN R.O.C. |
