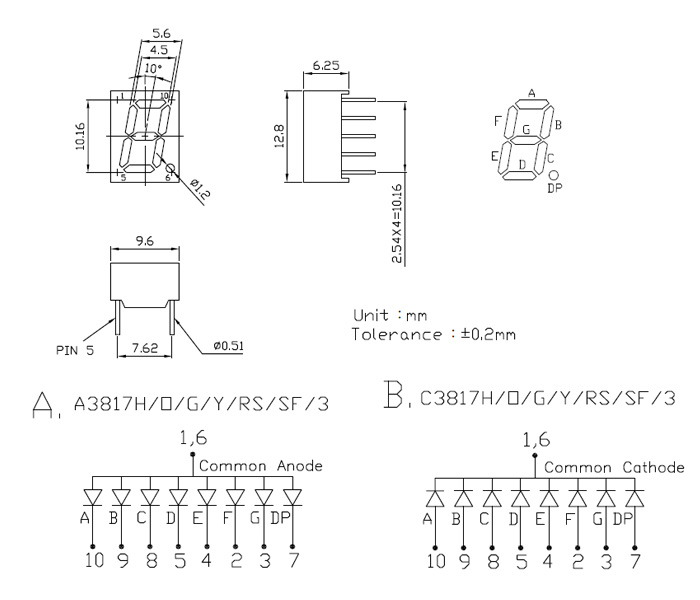

0.40 INCH (10mm) SINGLE DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
MADEL NO.
|
MADEL NO.
|
MADEL NO.
|
MADEL NO.
|
MADEL NO.
|
MADEL NO.
|
(nm) |
VR=5V |
IF=20mA |
IF=20mA |
||||||||
GAP RED |
A3817H | 0 | C3817H | 0 | 695 | 100 | 2.2 | 0.5MCD | ||||||||||
GaAsp ORANGE RED |
A3817O | 0 | C3817O | 0 | 630 | 100 | 2.0 | 2.5MCD | ||||||||||
GaP GREEN |
A3817G | 0 | C3817G | 0 | 570 | 100 | 2.2 | 5.0MCD | ||||||||||
GaP YELLOW |
A3817Y | 0 | C3817Y | 0 | 600 | 100 | 2.2 | 3.0MCD | ||||||||||
GaAIAS RED |
A3817RS | 0 | C3817RS | 0 | 650 | 100 | 1.8 | 5.0MCD | ||||||||||
GaAIAS RED |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAIAS YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
SIC BLUE |
A3817F | 0 | C3817F | 0 | 430 | 100 | 3.6 | 3.0MCD | ||||||||||
ZNSE WHITE |
A38173 | 0 | C38173 | 0 | 485+ | 100 | 3.0 | 3.0MCD | ||||||||||
 |
¡@ |  |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2698-9798 FAX:886-2-2698-3818 4F-5 NO.79,SEC.1,HSIN TAI WU ROAD,HSI-CHIH, TAIPEI HSIEN,TAIWAN R.O.C. |
