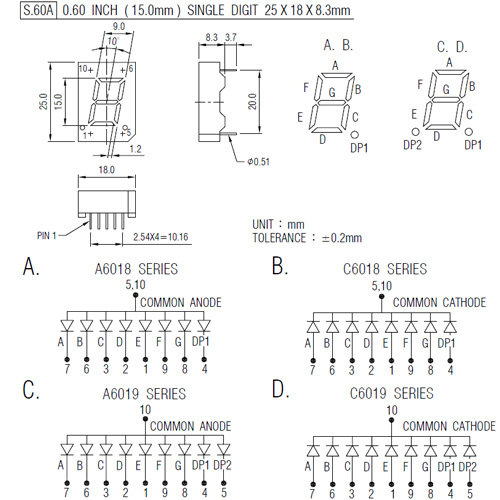

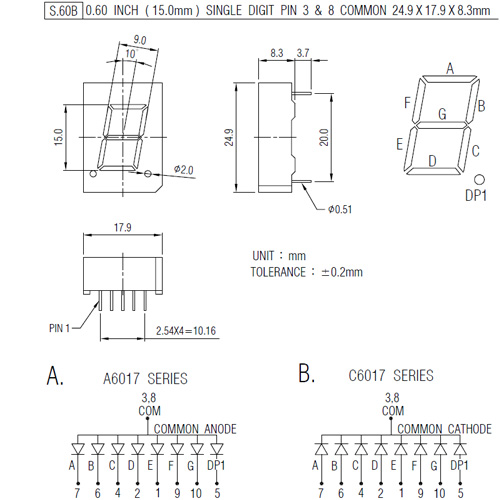

0.60" (15mm) SINGLE DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | (nm) | VR=5V | IF=20mA | IF=20mA | ||||||||
GaP RED |
A6018H | A6019H | 0 | C6018H | C6019H | 0 | 695 | 100 | 2.2 | 2.5MCD | ||||||||
GaAsp ORANGE RED |
A6018O | A6019O | 0 | C6018O | C6019O | 0 | 630 | 100 | 2.0 | 2.5MCD | ||||||||
GaP GREEN |
A6018G | A6019G | 0 | C6018G | C6019G | 0 | 570 | 100 | 2.2 | 4.5MCD | ||||||||
GaP YELLOW |
A6018Y | A6019Y | 0 | C6018Y | C6019Y | 0 | 600 | 100 | 2.2 | 2.5MCD | ||||||||
GaAIAS RED |
A6018RS | A6019RS | 0 | C6018RS | C6019RS | 0 | 650 | 100 | 1.8 | 3.0MCD | ||||||||
GaAIAS RED |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAIAS YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
SIC BLUE |
A6018F | A6019F | 0 | C6018F | C6019F | 0 | 465±5 | 100 | 3.6 | 30MCD | ||||||||
ZNSE WHITE |
A60183 | A60193 | 0 | C60183 | C60193 | 0 | 485+ | 100 | 3.0 | 2.5MCD | ||||||||
 |
 |
