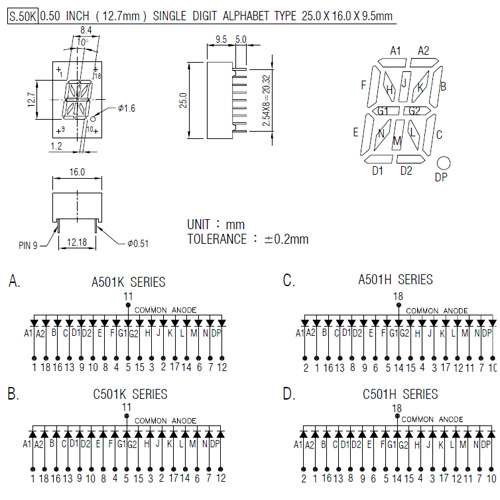

0.50 INCH SINGLE DIGIT ALPHABET TYPE
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | (nm) |
VR=5V |
IF=20mA |
IF=20mA |
||||||||
GaP RED |
A501KH | C501KH | C501HH | 695 | 100 | 2.2 | 0.6MCD | |||||||||||
GaAsp ORANGE RED |
A501KO |
C501KO |
C501HO | 635 | 100 | 2.0 | 4.0MCD | |||||||||||
GaP GREEN |
A501KG |
C501KG |
C501HG | 570 | 100 | 2.2 | 4.5MCD | |||||||||||
GaP YELLOW |
A501KY |
C501KY |
C501HY | 600 | 100 | 2.2 | 4.0MCD | |||||||||||
GaAIAS RED |
A501KRS |
C501KRS |
C501HRS | 650 | 100 | 1.8 | 8.0MCD | |||||||||||
GaAIAS RED |
||||||||||||||||||
GaAIAS YELLOW GREEN |
||||||||||||||||||
SIC BLUE |
A501KFS |
C501KFS |
C501HF | 430 | 100 | 3.6 | 2.0MCD | |||||||||||
ZNSE WHITE |
A501K3 |
C501K3 |
C501H3 | 485+ | 100 | 3.0 | 2.0MCD | |||||||||||
 |
¡@ |  |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2696-1188 FAX:886-2-2696-1098 5F NO.98,SEC.1,HSIN TAI WU ROAD,HSI-CHIH CITY, TAIPEI COUNTY,TAIWAN |
