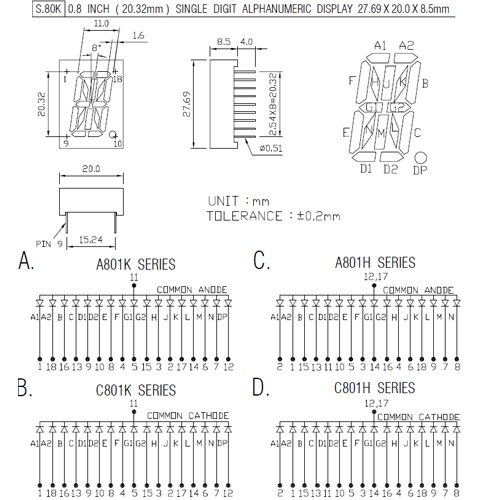

0.8 INCH SINGLE DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | (nm) |
VR=5V |
IF=20mA |
IF=20mA |
||||||||
GaP RED |
A801KH |
A801HH |
C801KH |
C801HH |
695 | 100 | 2.2 | 0.6MCD | ||||||||||
GaAsp ORANGE RED |
A801KO |
A801HO |
C801KO |
C801HO |
635 | 100 | 2.0 | 4.0MCD | ||||||||||
GaP GREEN |
A801KG |
A801HG |
C801KG |
C801HG |
570 | 100 | 2.2 | 4.5MCD | ||||||||||
GaP YELLOW |
A801KY |
A801HY |
C801KY |
C801HY |
600 | 100 | 2.2 | 4.0MCD | ||||||||||
GaAIAS RED |
A801KRS |
A801HRS |
C801KRS |
C801HRS |
650 | 100 | 1.8 | 8.0MCD | ||||||||||
GaAIAS RED |
0 | 0 | 0 | 0 | ||||||||||||||
GaAIAS YELLOW GREEN |
0 | 0 | 0 | 0 | ||||||||||||||
SIC BLUE |
A801KFS |
A801HFS |
C801KF |
C801HF |
430 | 100 | 3.6 | 2.0MCD | ||||||||||
ZNSE WHITE |
A801K3 |
A801H3 |
C801K3 |
C801H3 |
485+ | 100 | 3.0 | 2.0MCD | ||||||||||
GaAsp ORANG RED |
A801K0605 | C801K0605 |
635 | 100 | 2.0 | 16.0MCD | ||||||||||||
 |
¡@ |  |
