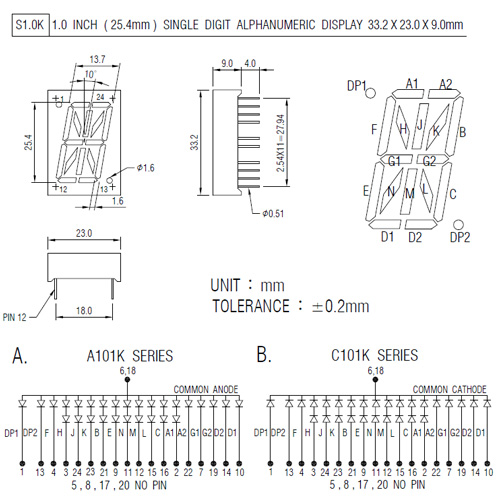

1.0 INCH SINGLE DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | (nm) |
VR=5V |
IF=20mA |
IF=20mA |
||||||||
GaP RED |
A101KH |
C101KH |
695 | 100 | 4.4 | 0.6MCD | ||||||||||||
GaAsp ORANGE RED |
A101KO |
C101KO |
635 | 100 | 4.0 | 4.0MCD | ||||||||||||
GaP GREEN |
A101KG |
C101KG |
570 | 100 | 4.4 | 4.5MCD | ||||||||||||
GaP YELLOW |
A101KY |
C101KY |
600 | 100 | 4.4 | 4.0MCD | ||||||||||||
GaAIAS RED |
A101KRS |
C101KRS |
650 | 100 | 3.6 | 8.0MCD | ||||||||||||
GaAIAS RED |
||||||||||||||||||
GaAIAS YELLOW GREEN |
||||||||||||||||||
SIC BLUE |
A101KFS |
C101KFS |
430 | 100 | 5.2 | 2.0MCD | ||||||||||||
ZNSE WHITE |
A101K3 |
C101K3 |
485+ | 100 | 6.0 | 2.0MCD | ||||||||||||
 |
¡@ |  |
