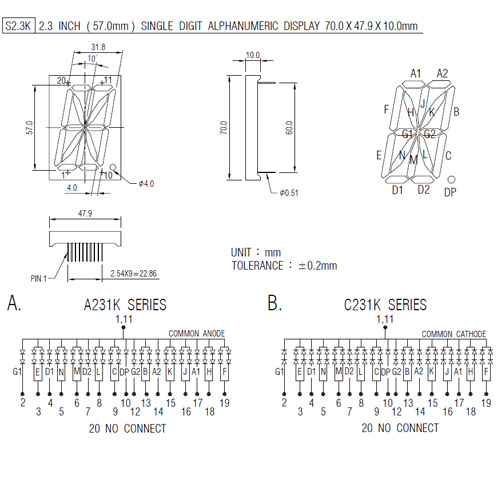

2.3 INCH SINGLE DIGIT ALPHANUMERIC DISPLAY
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
wave lencth |
|
|
luminous iNTENSITY | ||||||||
A |
C |
E |
B |
D |
F |
|||||||||
EMITTING COLOR |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
MADEL NO |
(nm) |
VR=5V |
IF=20mA |
IF=20mA |
||||
GAP RED |
||||||||||||||
GaAsp ORANGE RED |
A231KO |
C231KO |
635 | 100 | 4.0 | 4.0MCD | ||||||||
GaP GREEN |
A231KG |
C231KG |
570 | 100 | 4.4 | 4.5MCD | ||||||||
GaP YELLOW |
A231KY |
C231KY |
600 | 100 | 4.4 | 4.0MCD | ||||||||
GaAIAS RED |
A231KRS |
C231KRS |
650 | 100 | 3.6 | 8.0MCD | ||||||||
GaAIAS RED |
||||||||||||||
GaAIAS YELLOW GREEN |
||||||||||||||
SIC BLUE |
A231KFS |
C231KFS |
430 | 100 | 5.2 | 2.0MCD | ||||||||
ZNSE WHITE |
A231K3 |
C231K3 |
485+ | 100 | 6.0 | 2.0MCD | ||||||||
 |
¡@ |  |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2696-1188 FAX:886-2-2696-1098 5F NO.98,SEC.1,HSIN TAI WU ROAD,HSI-CHIH CITY, TAIPEI COUNTY,TAIWAN |
