D1206(3.2 x1.6x1.1mm) Clear Lens Surface Mount LED

MODEL NO.
Lighting color
VF
λp
typ
(nm)
△λ
typ
(nm)
IV
mark
polarity
CLEAR LENS DIFFUSION
IF
(mA)
typ
(V)
max
(V)
IF
(mA)
min
(mcd)
typ
(mcd)

SMT1206SR+   Super Bright Red 20 1.9 2.6 660 20 20   25.0 A
SMT1206G   Green color 20 2.2 2.6 570 30 20   9.5 C
SMT1206Y   yellow color 20 2.1 2.6 590 40 20   6.5 C
SMT1206FS   Blue color 20 3.4 4.0 430 40 20   5.0 C
SMT1206SF   Super blue color 20 2.1 4.0 470 40 20   15.0 C
SMT1206YCS   Super Bright Red 20 2.1 2.6 590 40 20   15.0 C
SMT1206VR   Ulter yellow Green 20 3.5 2.7 640 40 20   40.0 C
SMT1206GS   Super Bright Green 20

2.1

 4.0 525 40 20   80.0 C
SMT1206GZ   Super yellow Green 20 2.1 2.7 574 40 20   40.0 C
SMT1206UY   Ulter yellow color 20 2.1 2.6 591 40 20   50.0 C
SMT1206OS   Super Orange 20 2.1 2.6 605 40 20   40.0 C
Series SMT1206 SERIES
Pd
(mW)
65
IF
(mA)
25
I FP
(mA)
100*1
Pd
(mW)
5
IOP
(°C)
-25~+80
Tst
(°C)
-30~+85

*1 Condition for IFP is pulse
of 1/10 duty and 0.1 msec width
Electro-optica Characterstics :

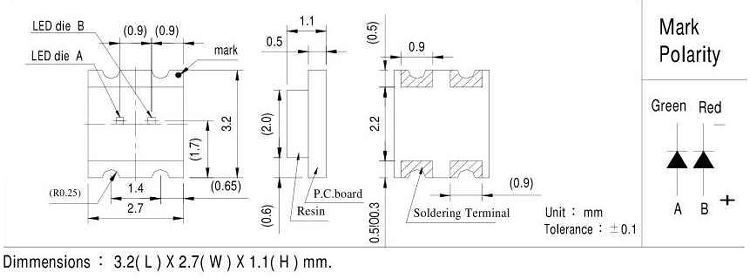

Recommended Soldering Patten

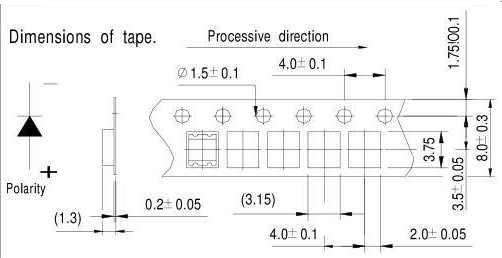

Tape Specifications :
for reflow solderng
Loaded quantity per reel :3000 pcs/reel



JOINSCAN'S 5mm LED LAMP Tester : OPTO Meter S370@20mA
  ¡@

JOINSCAN ELECTRONICS CO., LTD.
TEL:886-2-2698-9798    FAX:886-2-2698-3818
4F-5 NO.79,SEC.1,HSIN TAI WU ROAD,HSI-CHIH, TAIPEI HSIEN,TAIWAN R.O.C.
