SMT12100 Series Bi-Color Surface Mount LED



Electro - optical Characteristics
(Ta=25°)
Code for parts
Lighting color
VF
λp
typ
(nm)
△λ
typ
(nm)
IV
IF
(mA)
typ
(V)
typ
(V)
IF
(mA)
min
(mcd)
typ
(mcd)
SMT12102RGB
Super Red
20
1.8
2.6
660
40
20
8.0
20.0
Green coor
20
2.2
2.6
570
30
20
8.0
20.0
Biue color
20
1.8
4.0
470
30
20
8.0
30.0
SMT12102RGB
Super Red
20
1.8
2.6
660
40
20
8.0
25.0
Green coor
20
3.6
4.0
525
30
20
8.0
30.0
Biue color
20
3.6
4.0
470
30
20
8.0
30.0



Absolute Maximum Ratings :
(Ta=25°)
Series SMT12101　SERIES
Pd
(mW)
65
IF
(mA)
25
I FP
(mA)
100°C
Pd
(mW)
5
IOP
(°C)
-25~+80
Tst
(°C)
-30~+85

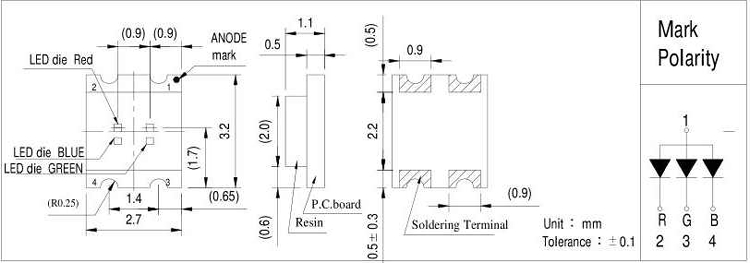

Package Outline Drawing 　:
Dimmensions　：　３.2(L) X2.7 (W) X1.1 (H)mm

Recommended Soldering Patten

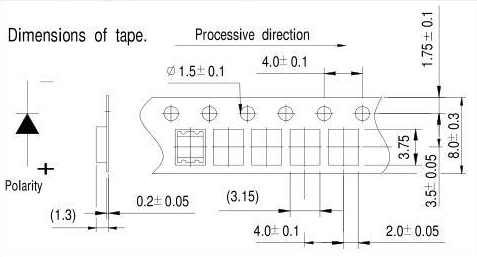

Tape Specifications :
for reflow solderng
Loaded quantity per reel :3000 pcs/reel


JOINSCAN'S 5mm LED LAMP Tester : OPTO Meter S370@20mA
  ¡@
