MINI TYPE SOT23 SURFACE MOUNT DEVICES LED LAMP

Download PDF File
(KB)



JOINSCAN'S LED
Tester : OPTO Meter S370@20mA
ELECTRO　GUIDE　AND　APPLICATION　INFORMATION　( RATINGS AT 25 AMBIENT)
Part No.
Chip
Lens
 Color
Wave
Length
P(nm)
Absolute
 Maximum LRatings
VF
   LUMINOUS
View
Angle
(deg-)

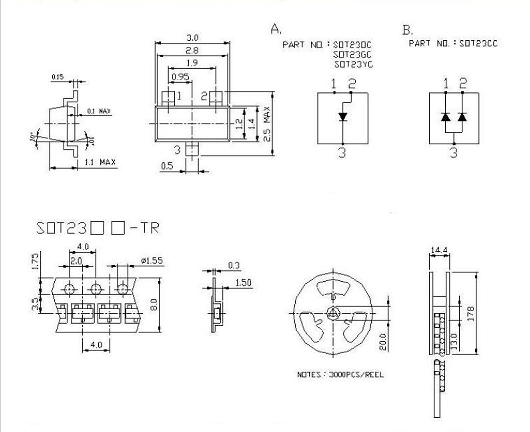

Pin Function
Raw Material Emitted Color
nm
λ△
Pd
MW
if
mA
if
(Park)
VI(V)
if
lv(mcd)
Min.
Typ.
Max.
(Pic)
Min.
Typ.
old model no. old model no. GaP Bright　Red Water　Clear 700 90 45 15 50 1.5 1.7 2.8 10   12.0 35
A
SOT23HC LO3WHC GaPSP/GaP Orange　Red Water　Clear 635 45 100 30 150 1.7 2.1 2.8 10   37.5 35
A
SOT23OC LO3WOC GaP Green Water　Clear 565 30 100 30 150

1.7

 2.8 2.8 10   45.0 35
A
SOT23GC LO3WGC GaP Bright　Green Water　Clear 565 30 100 30 150 1.7 2.8 2.38 10   65.0 35
A
SOT23SGC SO3WSGC GaPSP/GaP Yellow Water　Clear 585 30 100 30 150 1.7 2.8 2.8 10   30.0 35
A
SOT23YC SO3WYC GaAIAs Bright　Red Water　Clear 660 20 60 20 150 1.6 2.1 2.1 10   67.5 35
A
SOT23SC SO3WSC GaAIAs Super　Red Water　Clear 660 20 60 20 150 1.6 2.1 2.1 10   80.0 35
A
SOT23UC SO3WUC GaPSP/GaP Orange　Red Orange Red Diffused 635 45 100 30 150 1.7 2.1 2.8 10   37.5 35
A
SOT23UD SO3WUD GaP Green Green Diffused 565 30 100 30 150 1.7 2.8 2.8 10   45.0 35
A
SOT23ED SO3WED GaP Bright　Green Bright　Green Diffused 565 30 100 30 150 1.7 2.8 2.8 10   65.0 35
A
SOT23GC SO3WGC GaPSP/GaP Yellow Yellow Diffused 585 30 100 30 150 1.7 2.8 2.8 10   30.0 35
A
SOT23GDS SO3WGDS GaPSP/GaP Orange　Red Orange Red Diffused 635 45 100 30 150 1.7 2.8 2.8 10   37.5 35
A
SOT23YD SO3WYD GaP Green Green Diffused 565 30 100 30 150 1.7 2.8 2.8 10   45.0 35
A
SOT23CMA SO3WCMA GaPSP/GaP Orange　Red Water　Clear 635 45 100 30 150 1.7 2.8 2.8 10   37.5 35
B
SOT23CCA LO3WCCA GaP Green Water　Clear 565 45 100 30 150 1.7 2.8 2.8 10   45.0 35
B

ABSOLUTE　MAXIMUN　RATING(Ta=25) ELECTRO-OPTICAL　CHARACTRISTICS：　(Ta=25)
Revere Voltage 　 5Volt　
Revere　Current(Vr=5V) 10A　
Operating　Temperature　Range -40°C to　+85°C
Storage　Temperaure　Range -40°C to　+100°C
Lead　Soldering　Temperature (1.6mm(1/16inch)from　body)


260°C　for　5　Seconds
Para　meter　Description Symbol Unit　
Spectral　Line　haif-Width   nm　
Power　Dissipation Pb mW　
Peak　Forward　Current (Duty 1/10,@KHz) if(Peak) mA
Recommended　Operation　Current if(Pec) mA
Average　Luminous　intrnsity (if=10mA) lv mcd
