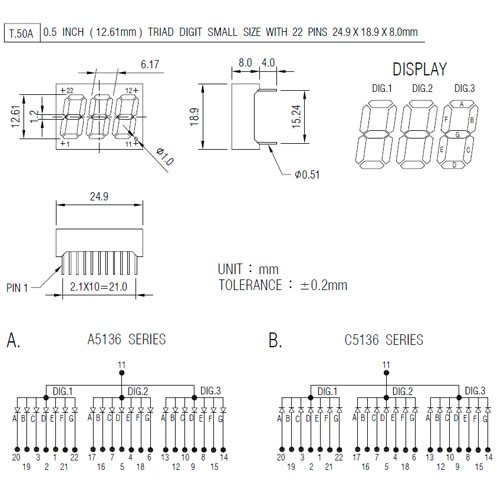

0.5 INCH TRIAD DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE | COMMON CATHODE |
|
|
|
LUMINOUS INTENSITY |
||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||
EMITTING COLOR |
MADEL NO. |
MADEL NO. |
MADEL NO. |
MADEL NO. |
MADEL NO. |
MADEL NO. |
(nm) | VR=5V | IF=20mA | IF=20mA | ||||||
GAP RED |
A5136H | 0 | 0 | C5136H | 0 | 0 | 695 | 100 | 2.2 | 0.6MCD | ||||||
GaAsp ORANGE RED |
A5136O | 0 |
0 | C5136O | 0 | 0 | 635 | 100 | 2.0 | 4.0MCD | ||||||
GOP GREEN |
A5136G | 0 | 0 | C5136G | 0 | 0 | 570 | 100 | 2.2 | 4.5MCD | ||||||
GOP YELLOW |
A5136Y | 0 | C5136Y | 00 | 0 | 600 | 100 | 2.2 | 4.0MCD | |||||||
GOAIAS RED |
A5136RS | 0 | 00 | C5136RS | 0 | 0 | 650 | 100 | 1.8 | 8.0MCD | ||||||
GOAIAS RED |
0 | 00 | 0 | 0 | 00 | 0 | 0 | 0 | 0 | 0 | ||||||
GOAIAS YELLOW GREEN |
0 | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||
SIC BLUE |
A5136F | 0 | 0 | C5136F | 0 | 0 | 430 | 100 | 3.6 | 2.0MCD | ||||||
ZNSE WHJTE |
A51363 | 0 | 0 | C51363 | 0 | 0 | 485+ | 100 | 3.0 | 2.0MCD | ||||||
 |
¡@ |  |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2698-9798 FAX:886-2-2698-3818 4F-5 NO.79,SEC.1,HSIN TAI WU ROAD,HSI-CHIH, TAIPEI HSIEN,TAIWAN R.O.C. |
