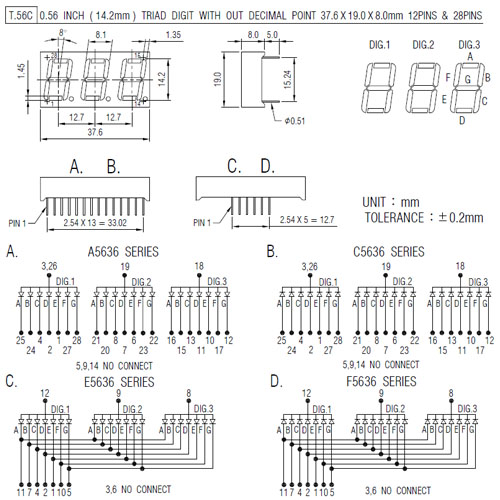

0.56" TRIAD DGIT WITH OUT DECIMAL POINT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
Tester : OPTO Meter S370@20mA |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
|
|
LUMINOUS INTENSITY |
||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||
EMITTING COLOR |
MADEL NO. |
MADEL NO. |
MADEL NO. |
MADEL NO. |
MADEL NO. |
MADEL NO. |
(nm) | VR=5V | IF=20mA | IF=20mA | ||||||
GAP RED |
A5638H | E5638H | 0 | C5638H | F5638H | 0 | 695 | 100 | 2.2 | 0.6MCD | ||||||
GaAsp ORANGE RED |
A5638O | E5638O | 0 | C5638O | F5638O | 0 | 635 | 100 | 2.0 | 4.0MCD | ||||||
GaP GREEN |
A5638G | E5638G | 0 | C5638G | F5638G | 0 | 570 | 100 | 2.2 | 4.5MCD | ||||||
GaP YELLOW |
A5638Y | E5638Y | C5638Y | F5638Y | 0 | 600 | 100 | 2.2 | 4.0MCD | |||||||
GaAIAS RED |
A5638RS | E5638RS | 00 | C5638RS | F5638RS | 0 | 650 | 100 | 1.8 | 8.0MCD | ||||||
GaAIAS RED |
0 | 0 | 0 | 0 | 00 | 0 | 0 | 0 | 0 | 0 | ||||||
GaAIAS YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||
SIC BLUE |
A5638F | E5638F | 0 | C5638F | F5638F | 0 | 465±5 | 100 | 3.6 | 4.0MCD | ||||||
ZNSE WHJTE |
A56383 | E56383 | 0 | C56383 | F56383 | 0 | 485+ | 100 | 3.0 | 2.0MCD | ||||||
 |
¡@ |  |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2698-9798 FAX:886-2-2698-3818 4F-5 NO.79,SEC.1,HSIN TAI WU ROAD,HSI-CHIH, TAIPEI HSIEN,TAIWAN R.O.C. |
