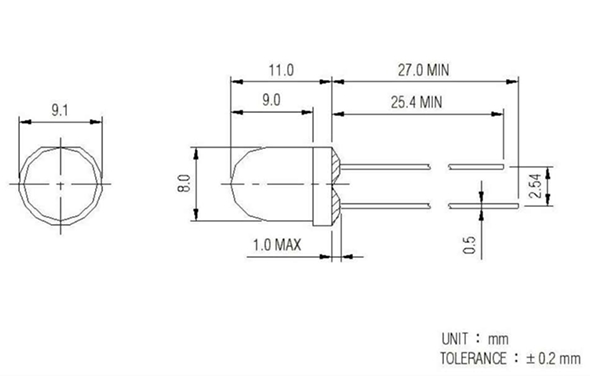

DIA 8mm INFRARED EMITTED DIODE



JOINSCAN'S LED

MODEL NO.
LENS COLOR

ELECTRICAL ＆ OPTICAL CHARACTERISTIC
VIEW ANGLE 2θ 1/2
PEAK WAVE LENGTH
@IF=20mA
FORWARD VOLTAGE
VF(V)TYP@IF=20mA
R.O.P(mW)
@IF=20mA
20°
L103T1-940
 WATER CLEAR
940nm
1.4V
3.0 mW


L103T1-880
 WATER CLEAR
880nm
1.7V
5.0 mW


L103T1-850
 WATER CLEAR
850nm
1.7V
10.0 mW
